Gallery/Products

Chrome White Iron and Ductile Iron Images


Penticton Foundry’s gallery contains a collection of images that reflect our innovative use of chrome white iron and ductile iron to create superior parts that we deliver on time and on budget.  The gallery covers industries such as mining and crushing, OEM, fracking, oil and gas, pump and the Oil Sands.  We are pleased that we have helped our customers substantially improve their wear time and decrease their downtime. Please note that the gallery only reflects some of our products. Contact us today if you have any questions.

Mining and Crushing

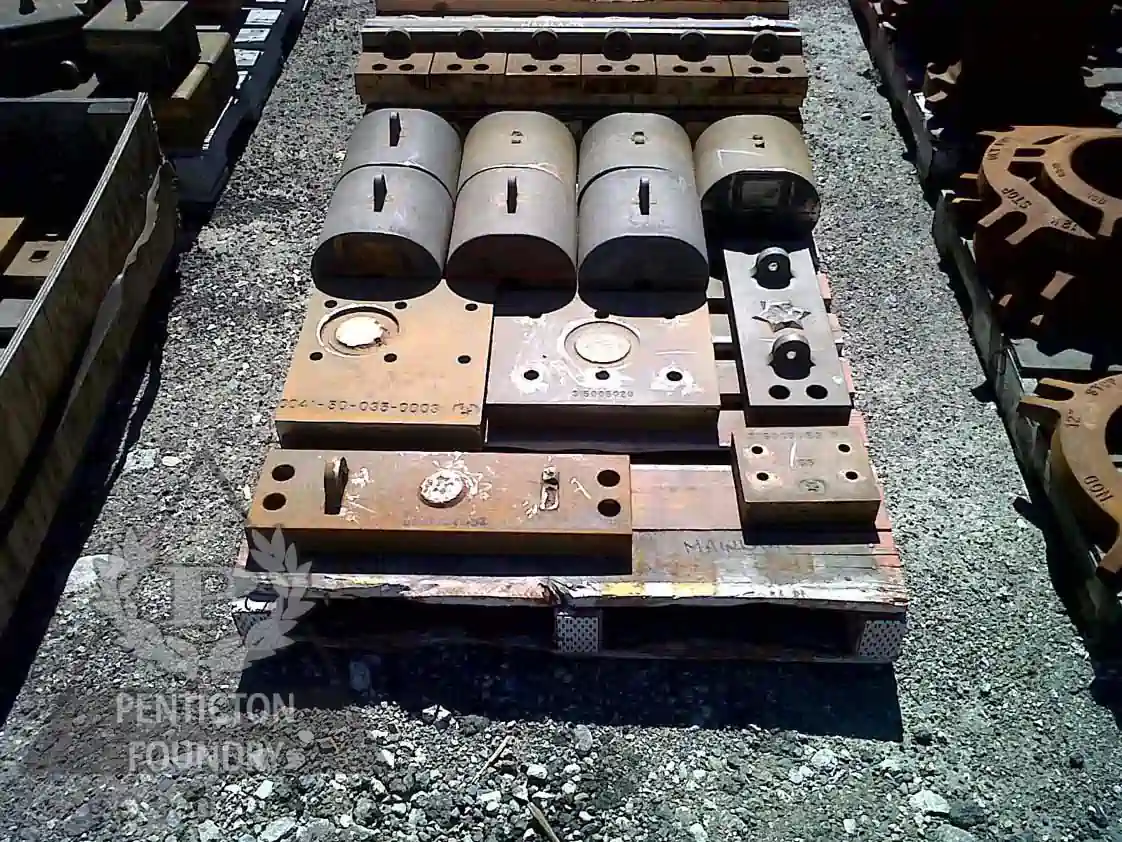

Miscellaneous high chrome white iron liners for the mining industry.Search

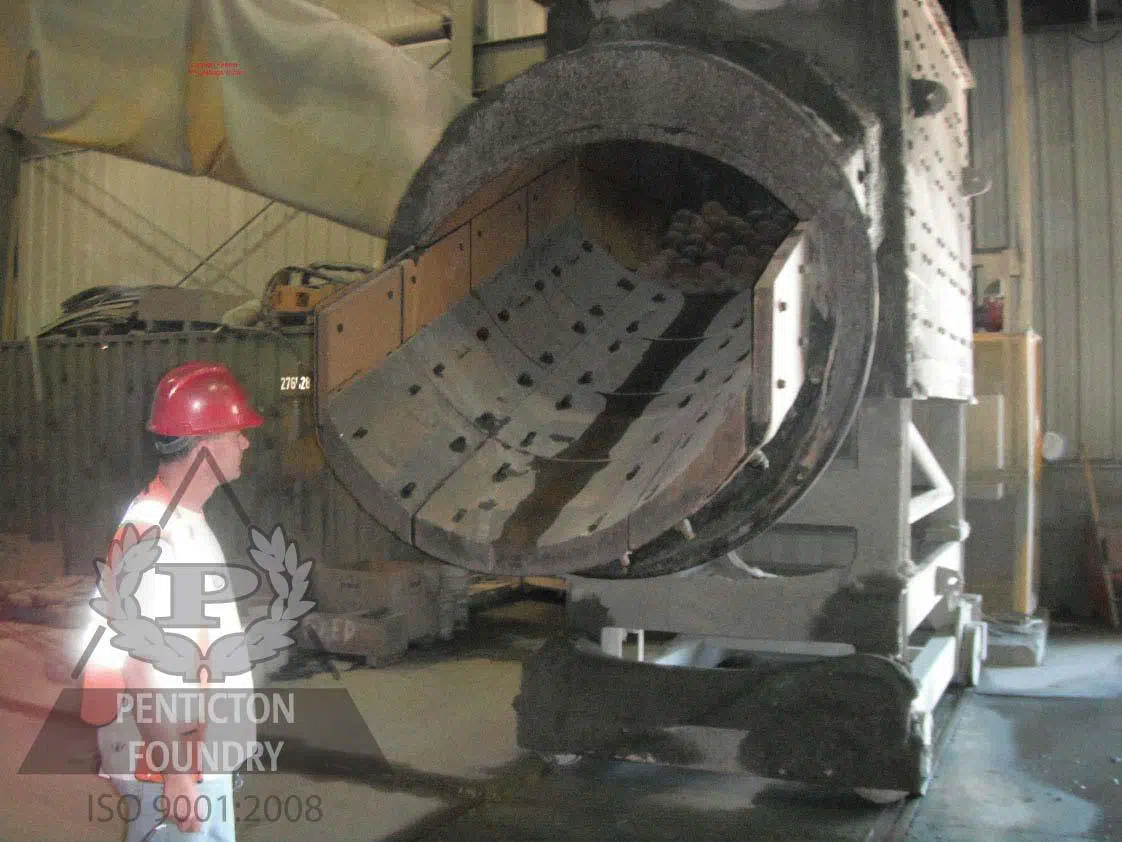

Solid high chrome white iron feed chute liners, replacing AR plate.Search

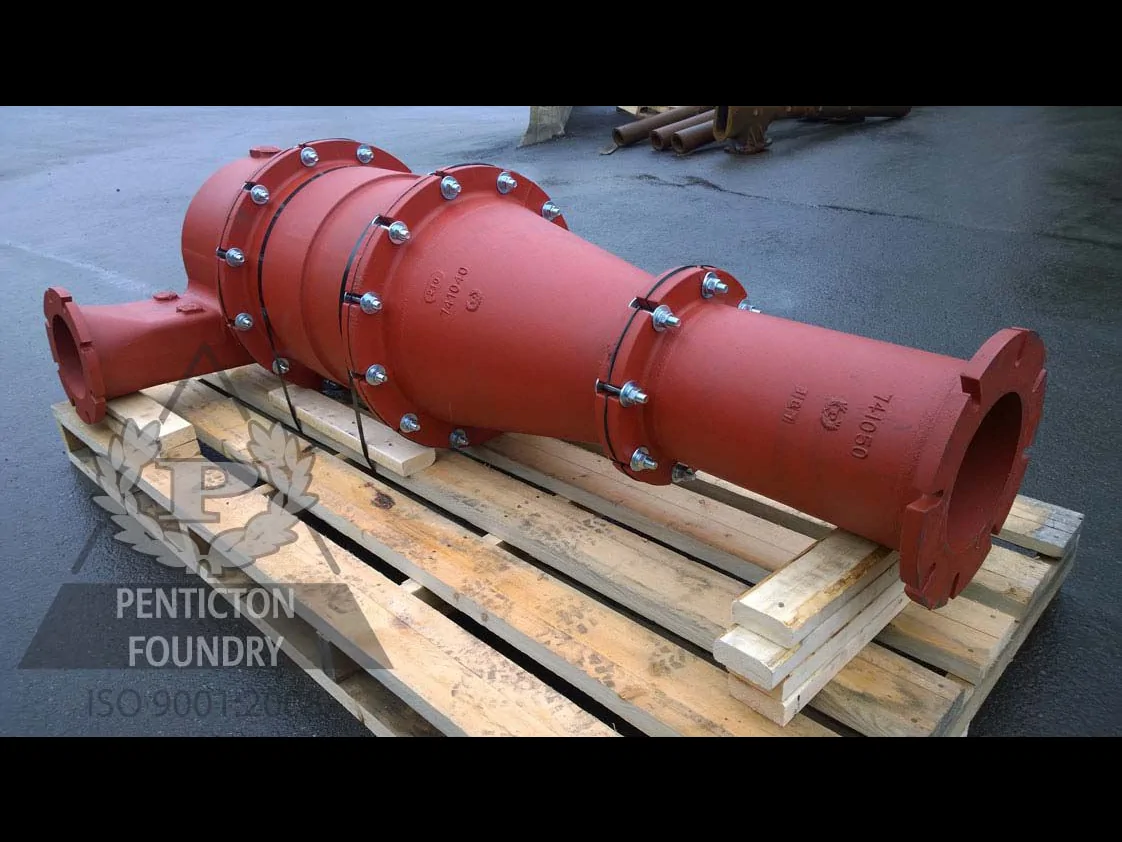

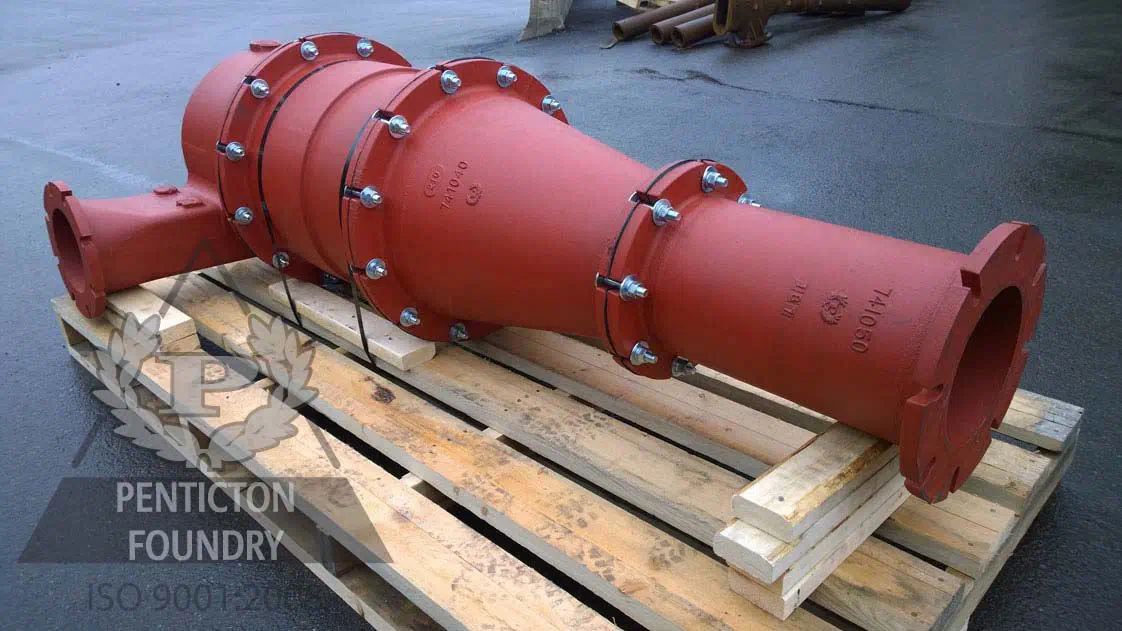

High chrome white iron cyclone (HCWI) used in an oil sands mine.Search

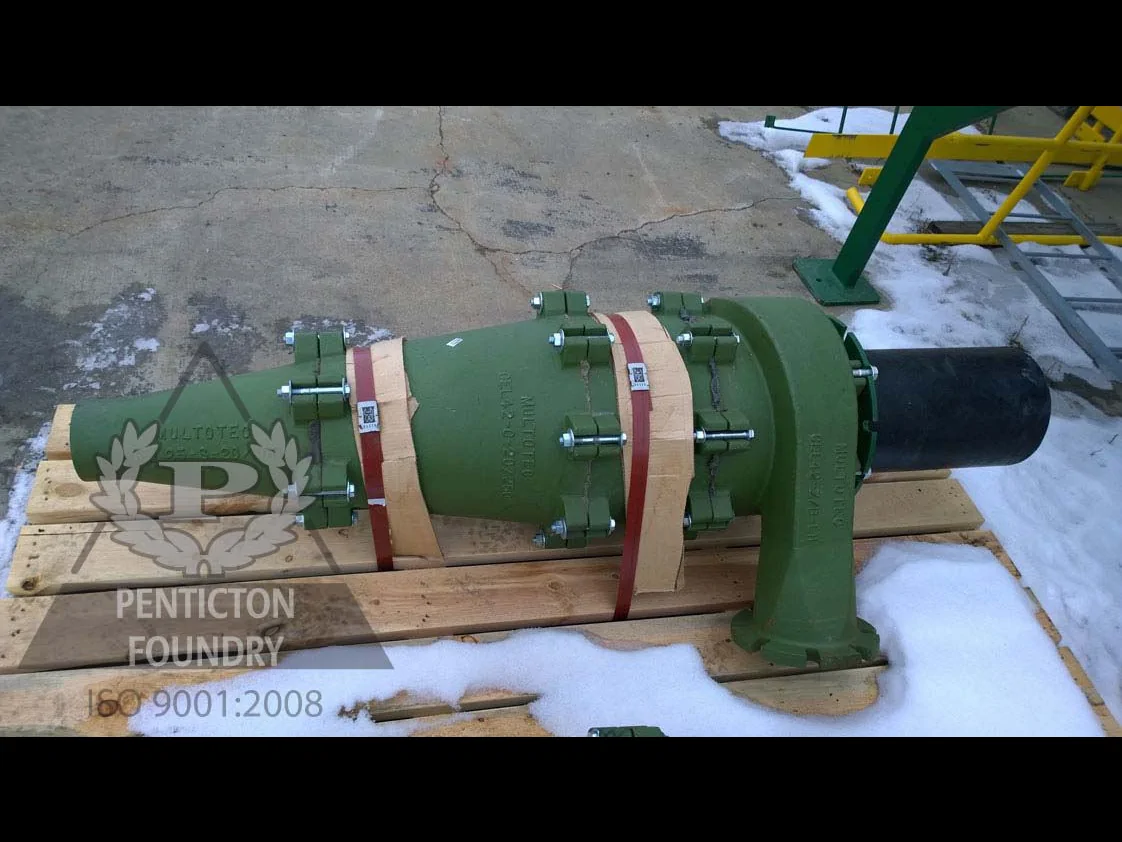

A cyclone built by Penticton Foundry for the diamond mining industry.Search

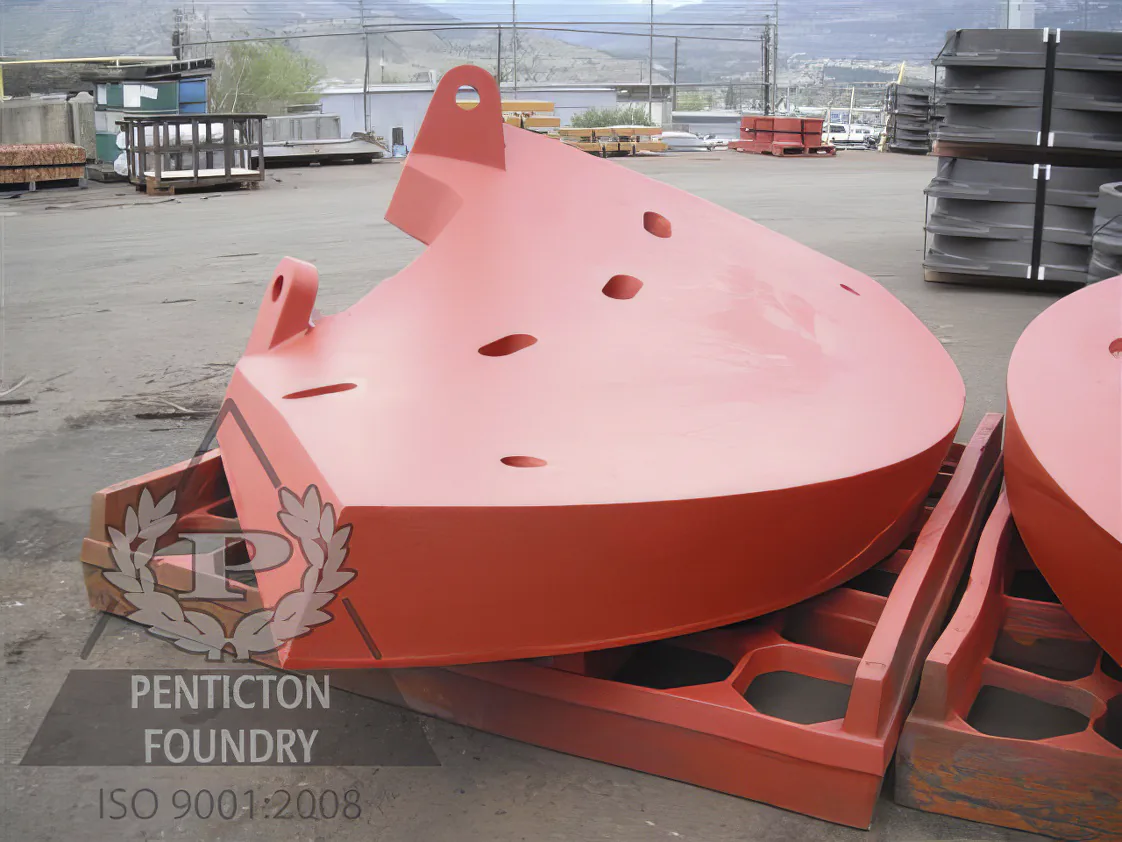

Verti – Mill wear liner cast in solid chrome white iron for mining industry.Search

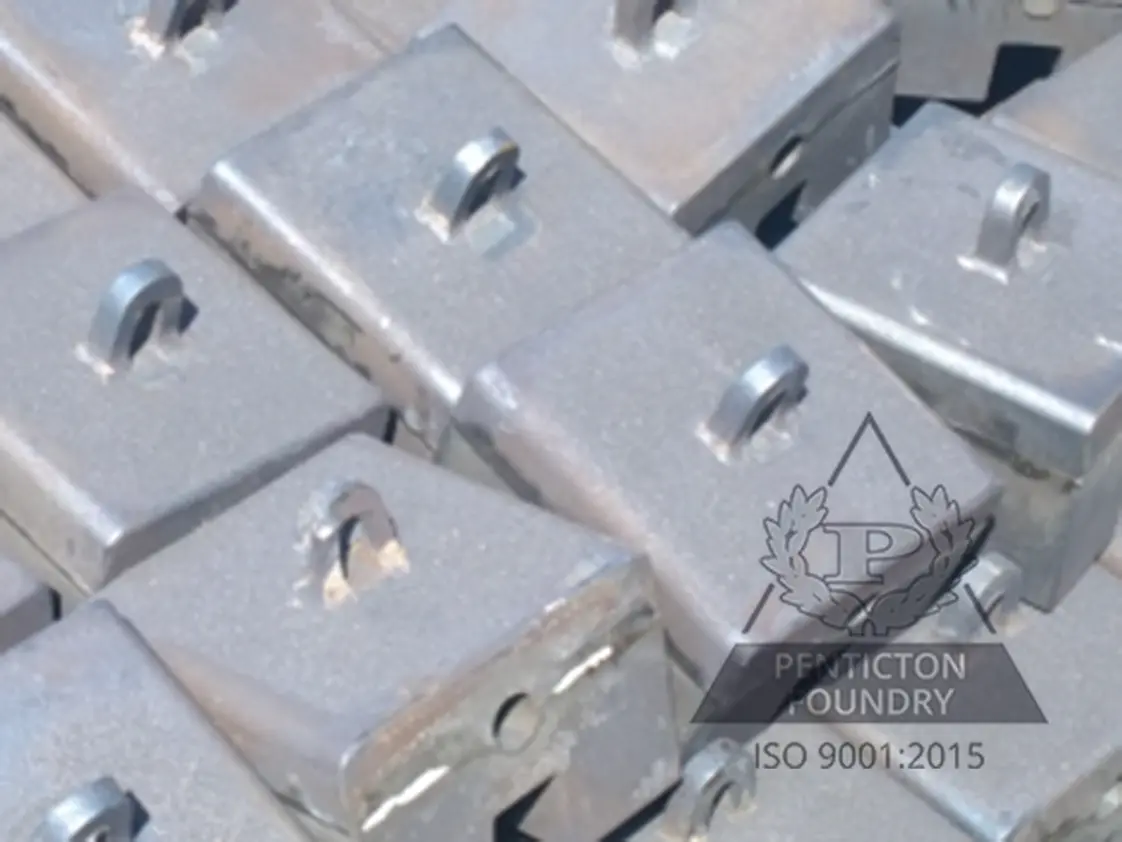

Chrome white iron loaf liners for the mining industrySearch

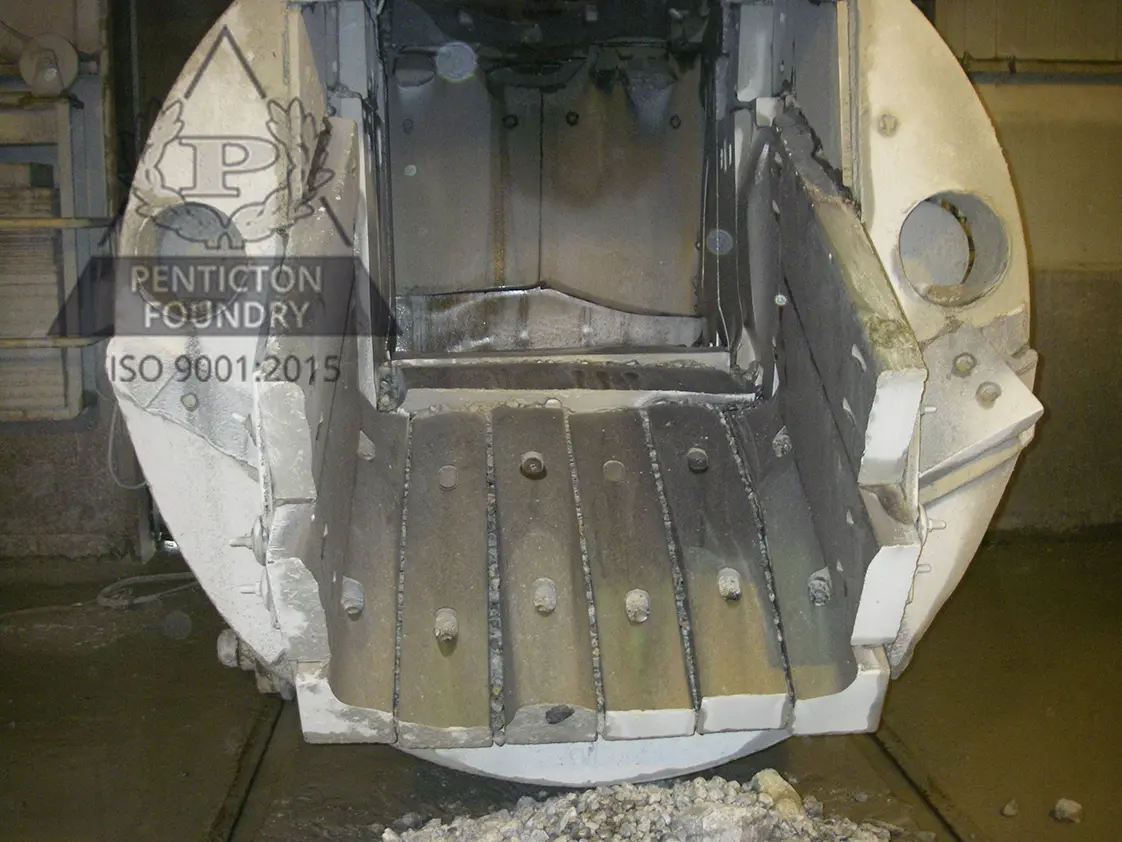

Trojan horse chrome white iron liner for the mining industrySearch

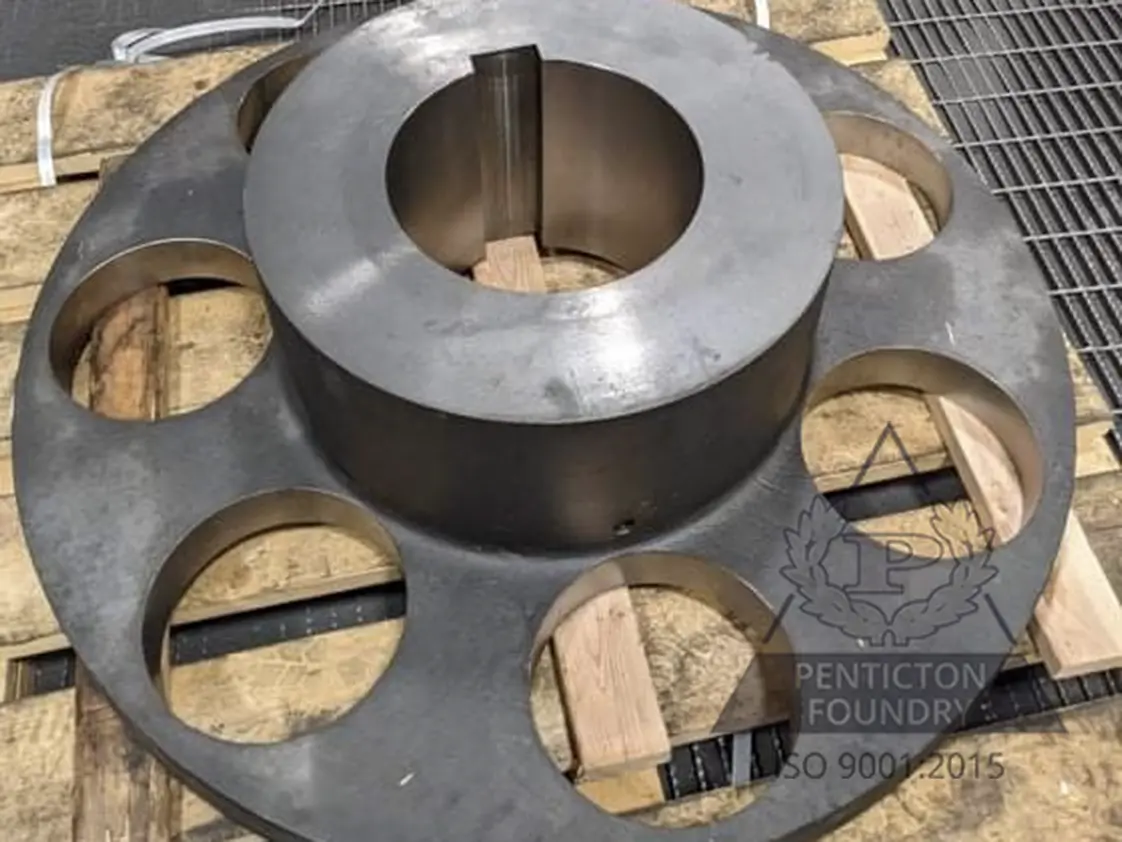

Inching hub for a rotating ball millSearch

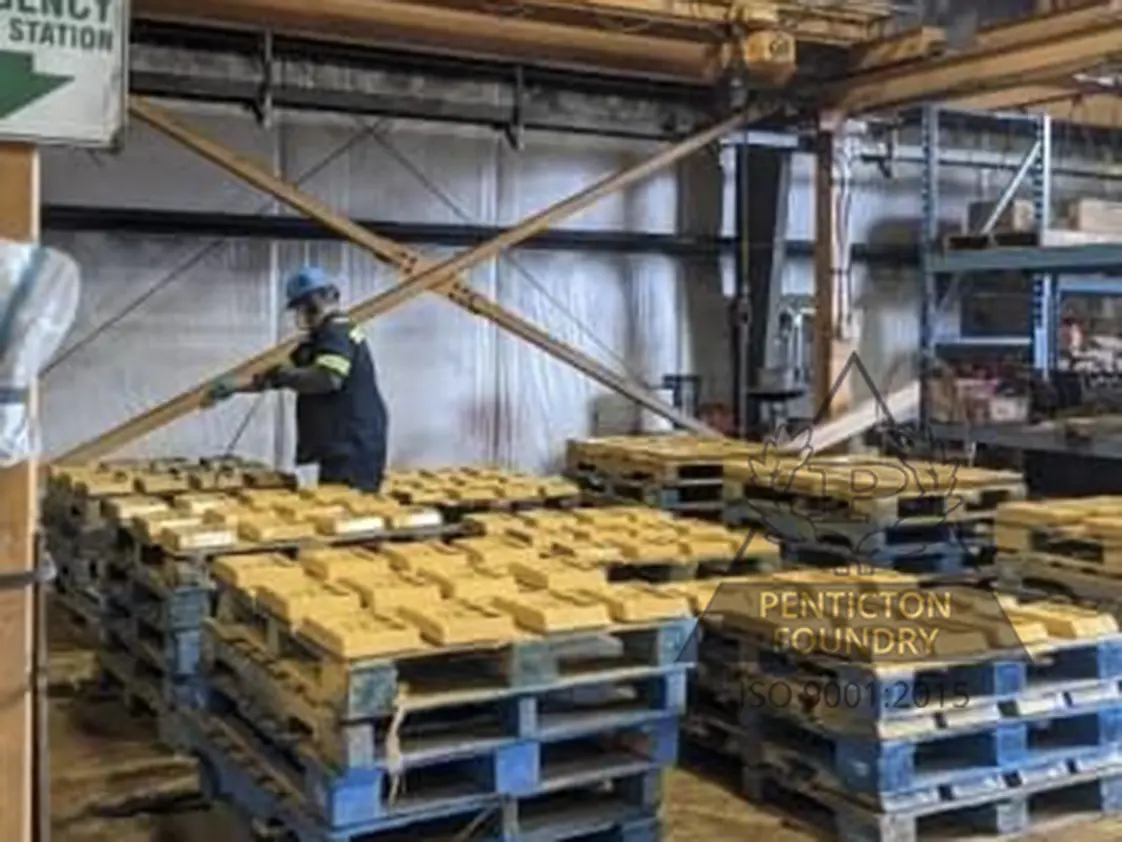

Chrome white iron wear liners for the mining industry.Search

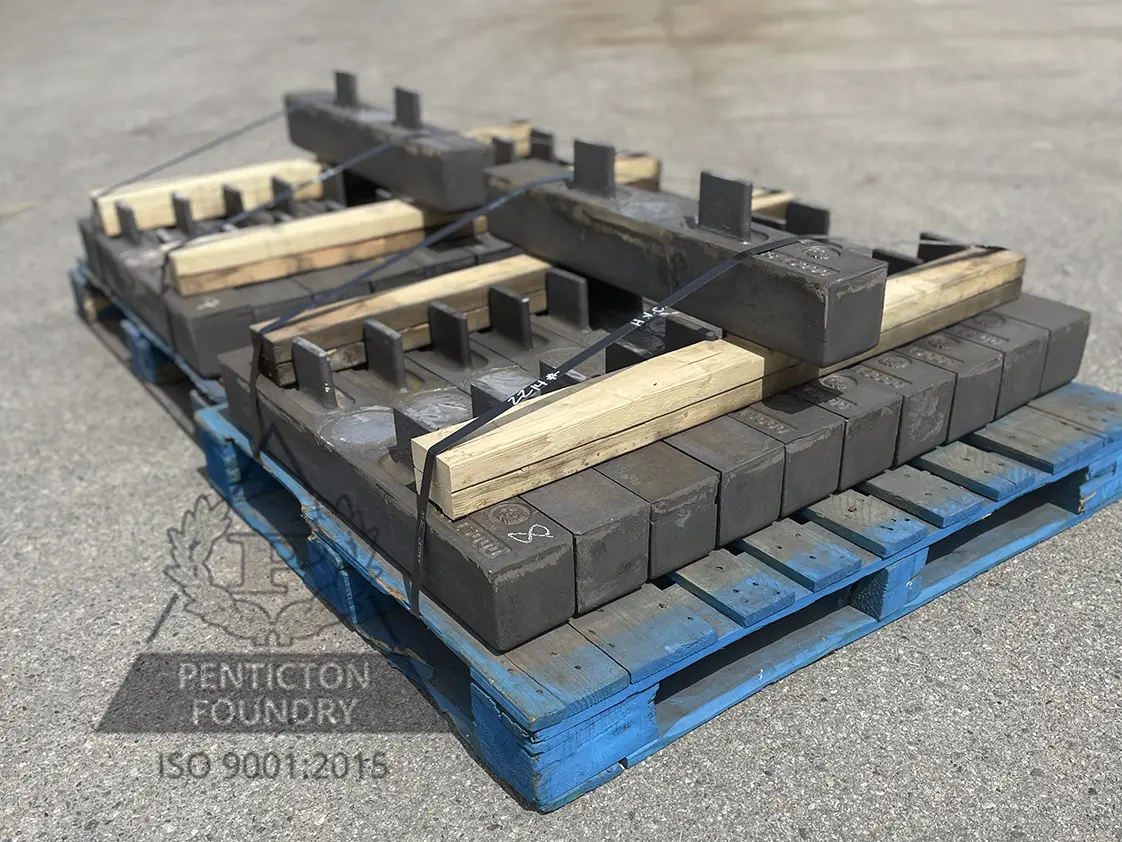

High chrome white iron Bar T linersSearch

Oil and Gas

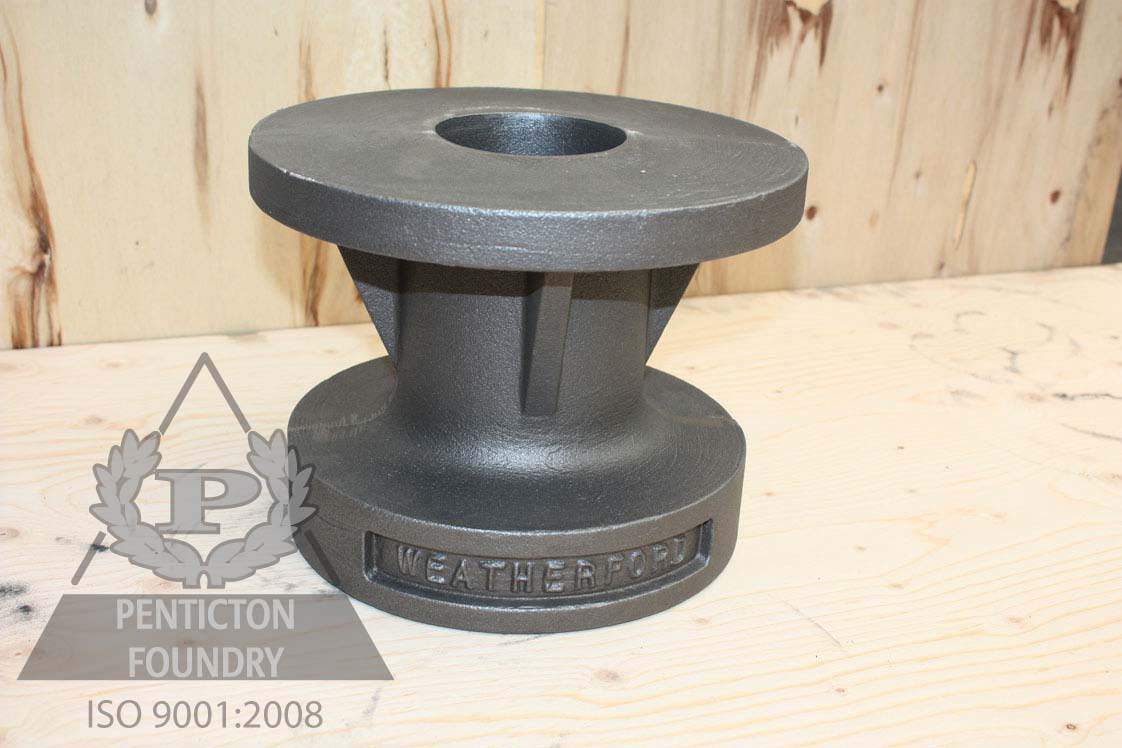

Ductile iron stuffing box.Search

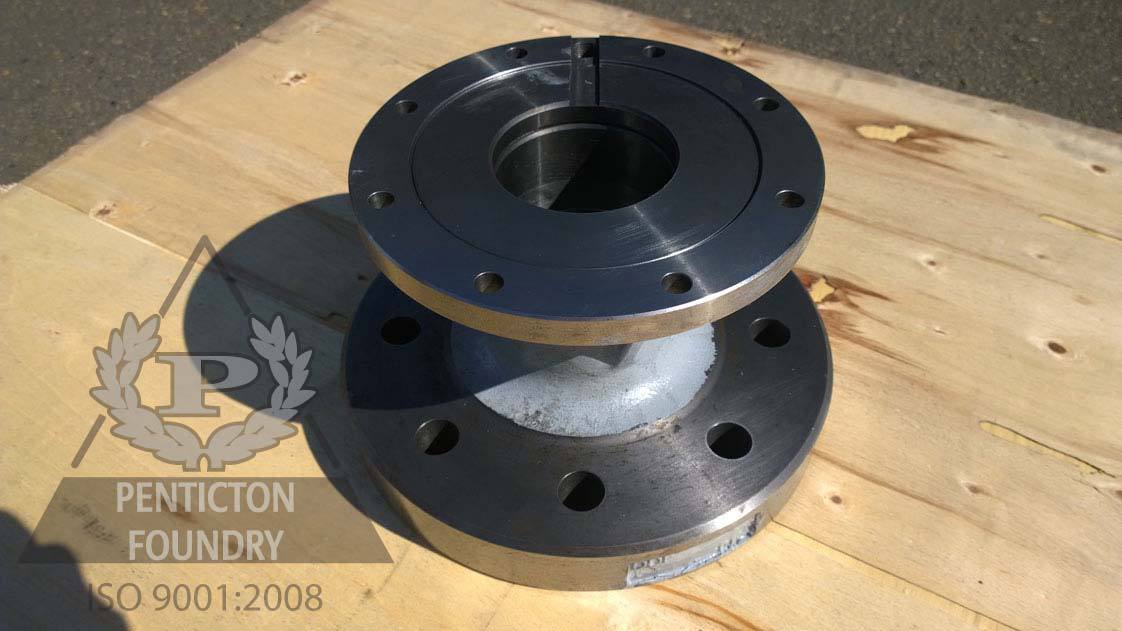

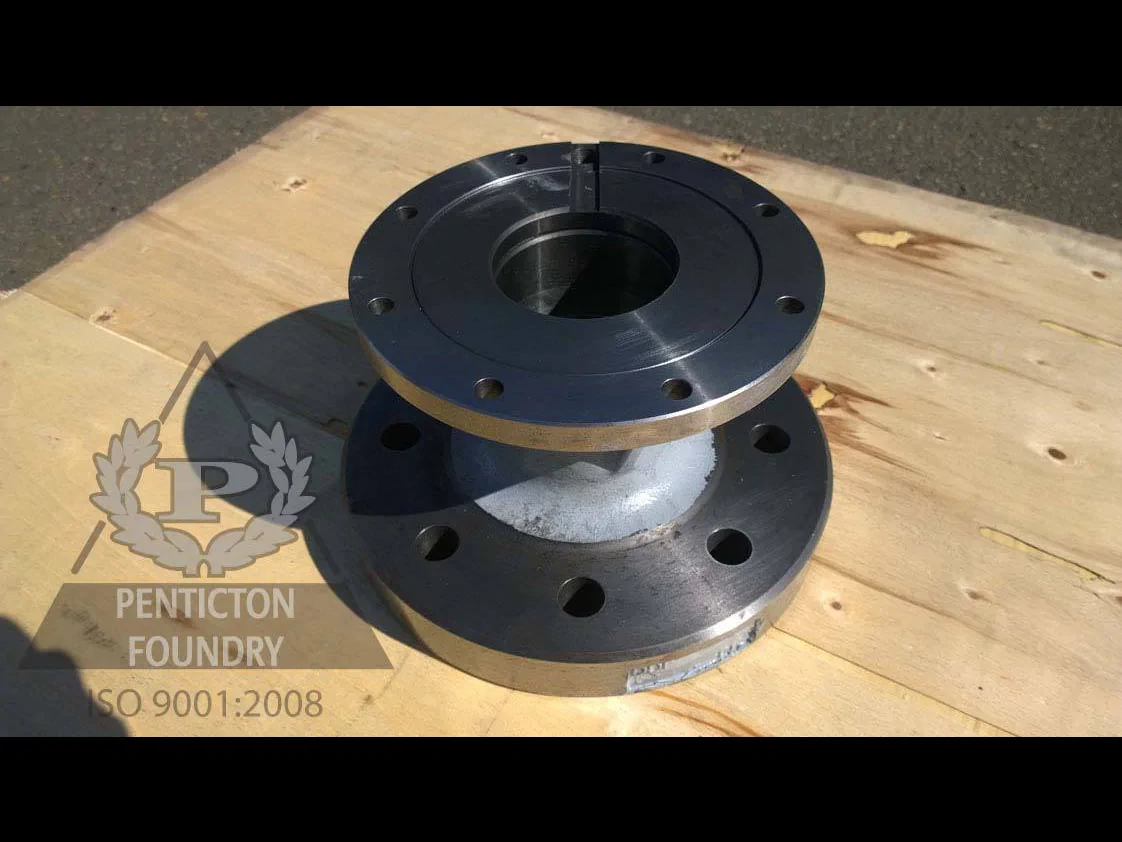

Ductile iron machined stuffing box.Search
Oil pump parts cast in ductile iron including BOP, wellhead frame and stuffing box.Search

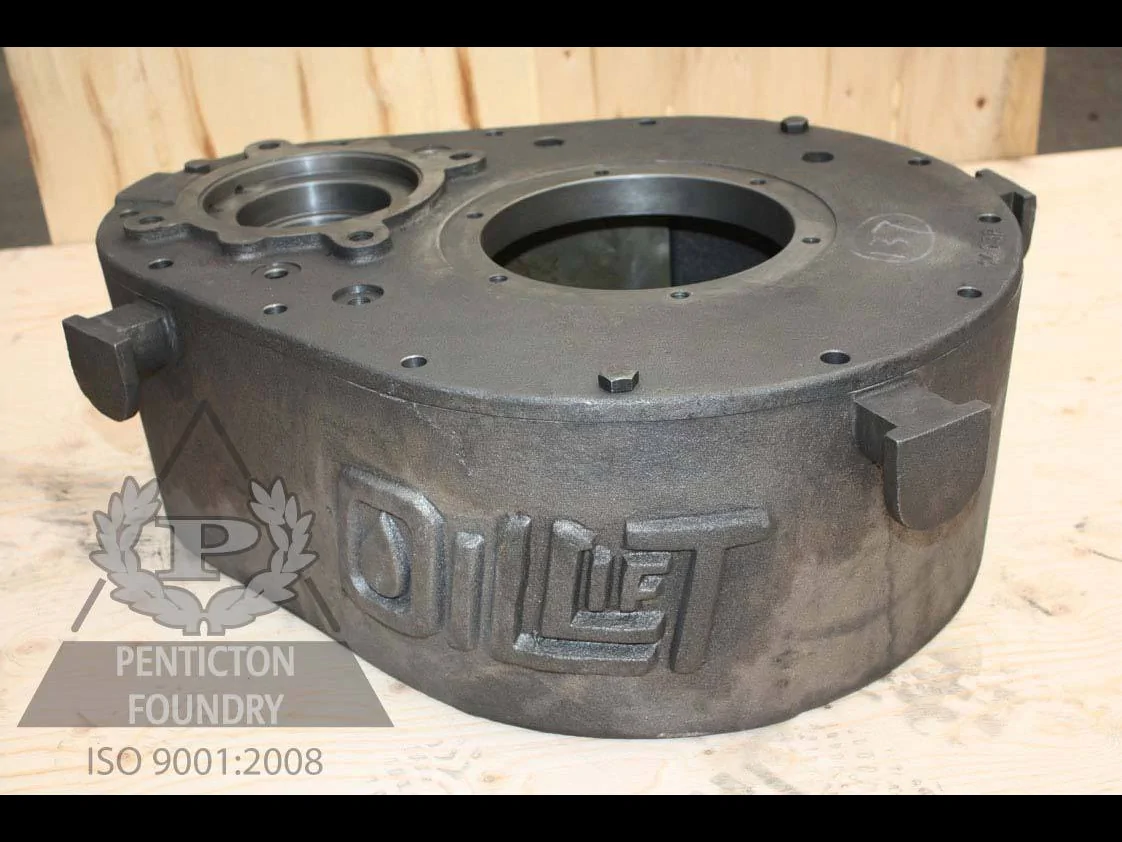

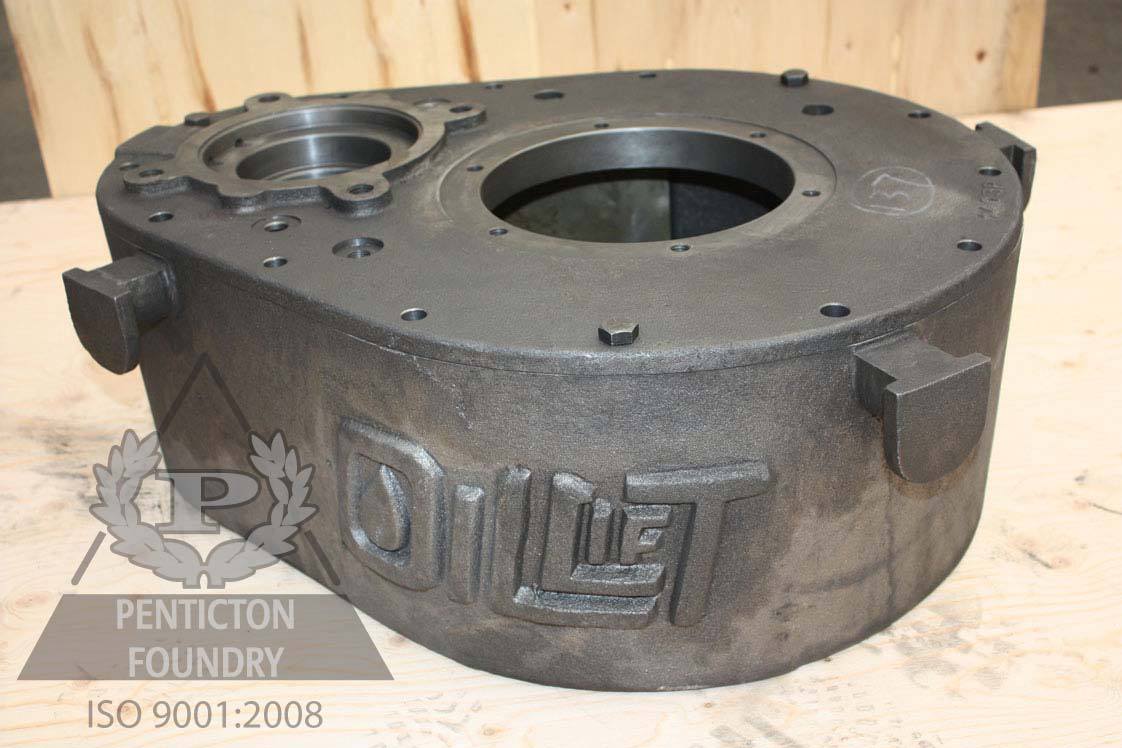

Ductile iron PC pump gear box and lid.Search

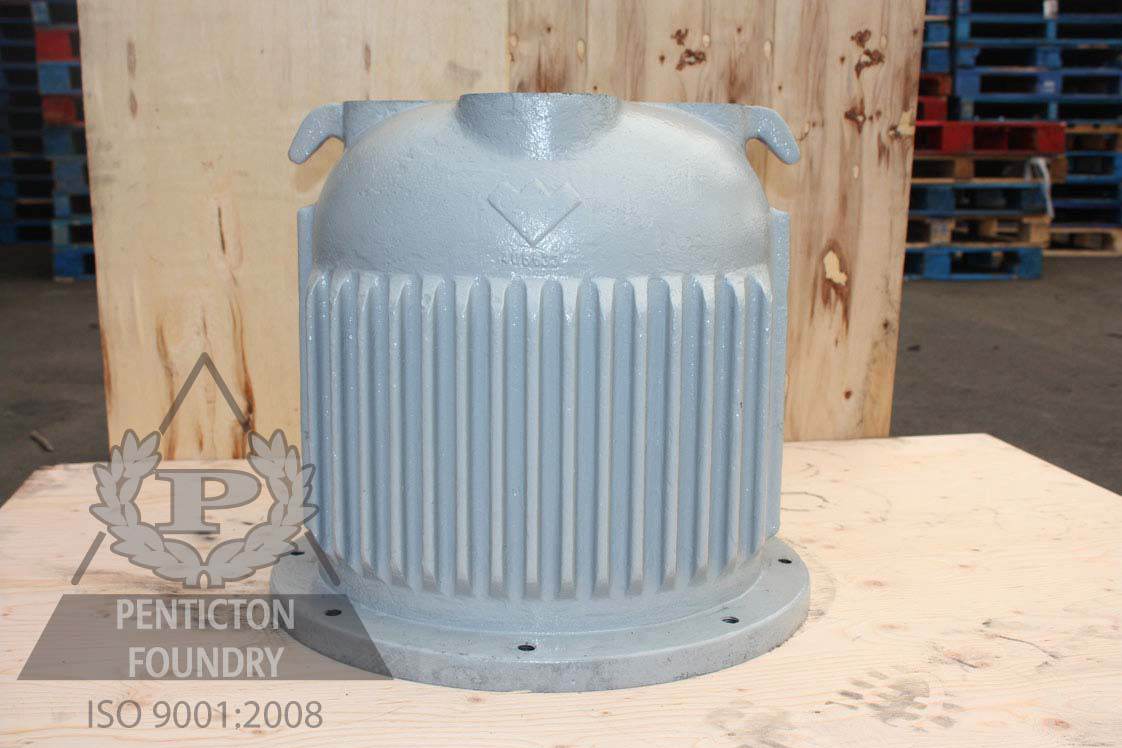

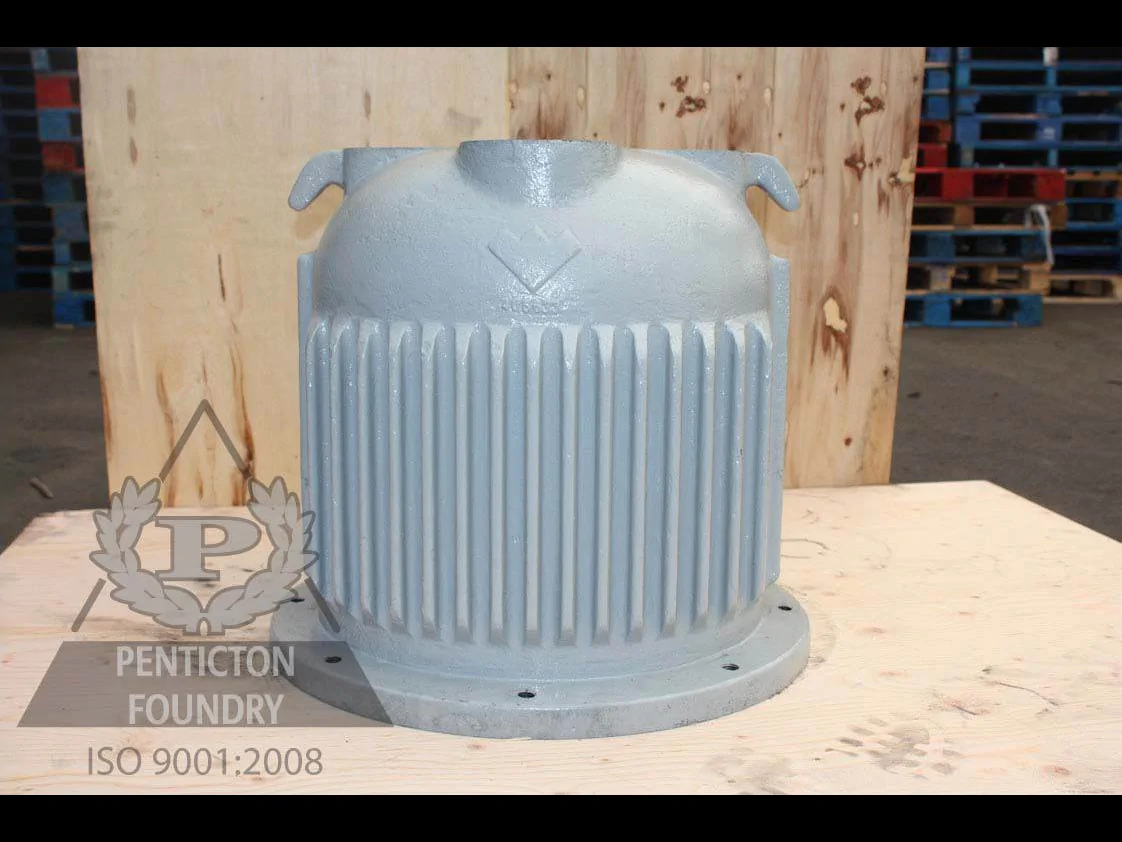

Progressive cavity pump motor housing in ductile iron.Search

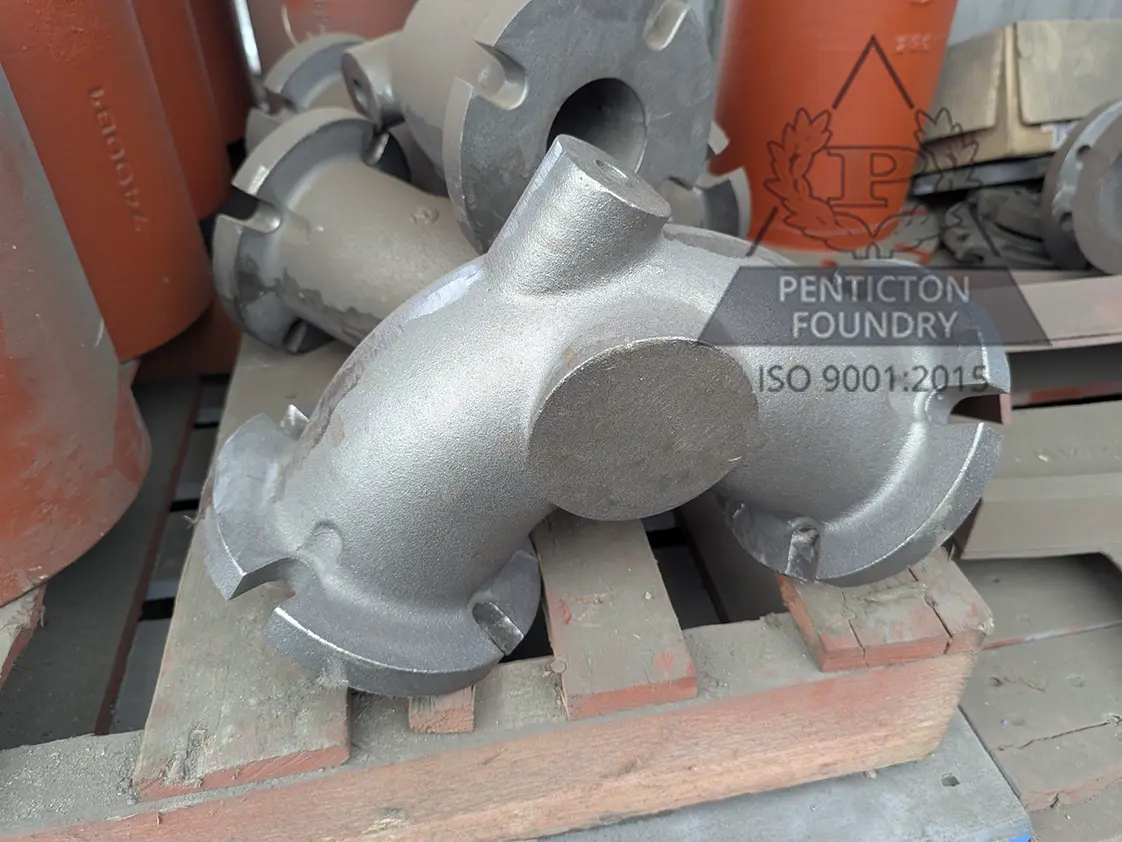

High chrome white iron elbowSearch

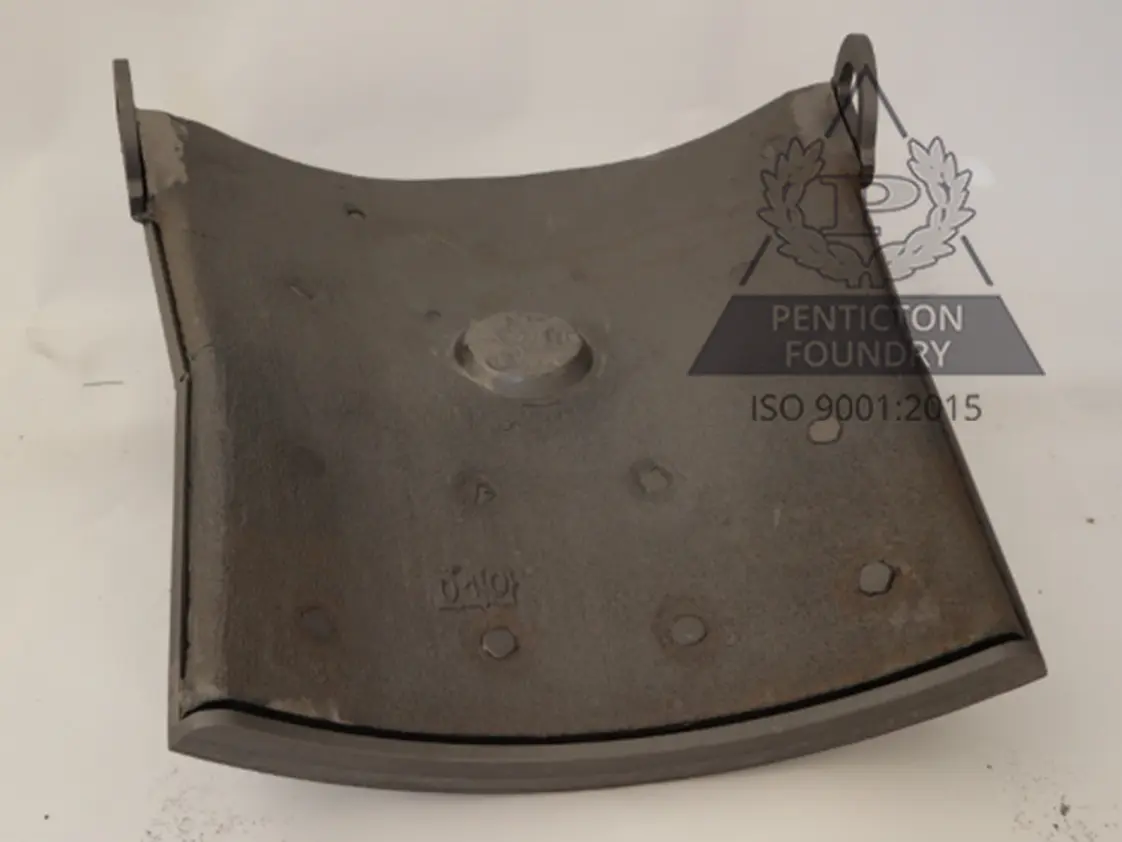

Bimetallic rockbox liner made of chrome white iron cast onto steel, weldable from the backsideSearch

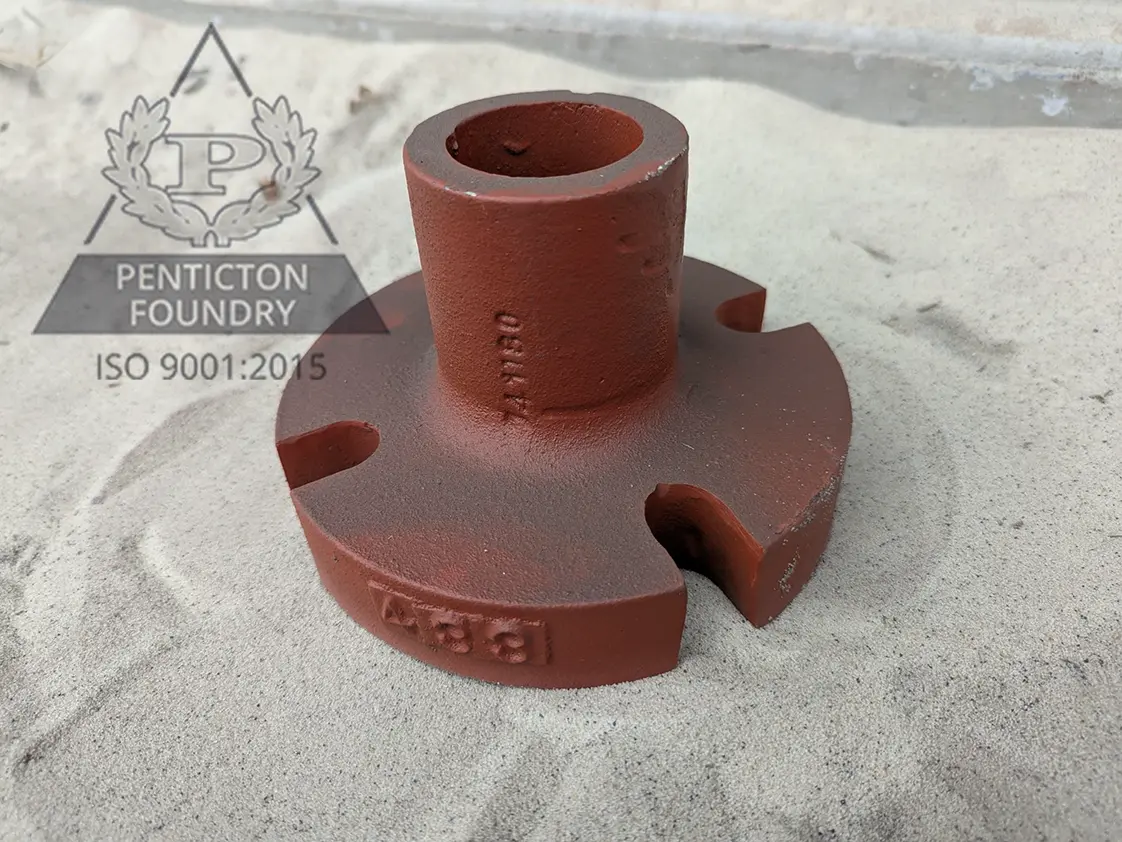

High chrome white iron flange connectorSearch
Cyclone feed box in chrome white ironSearch

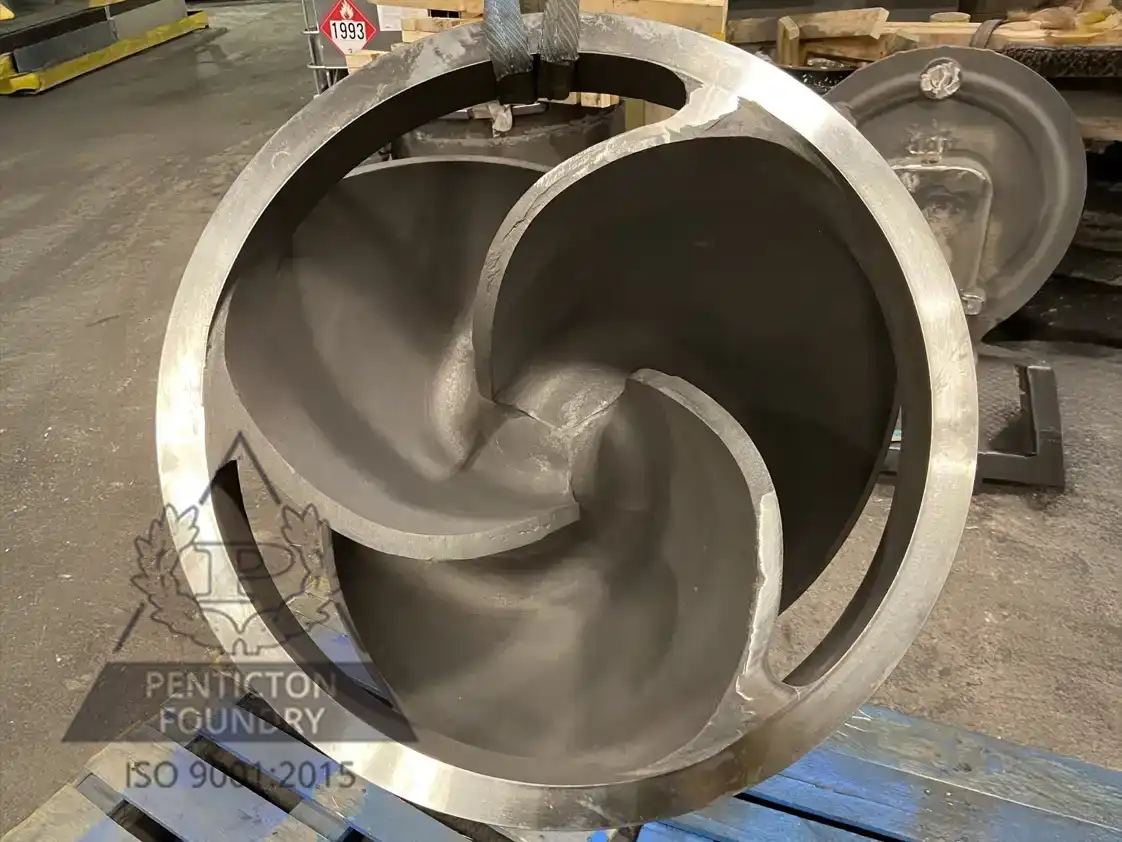

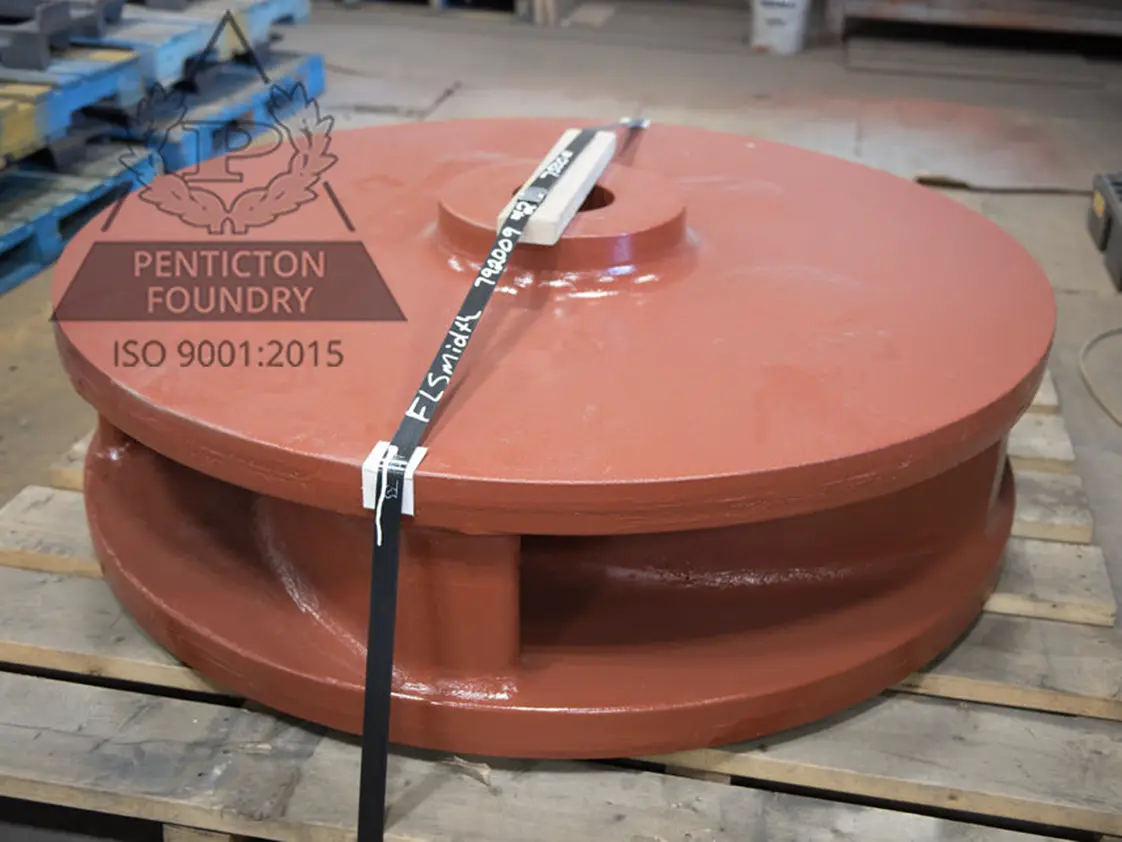

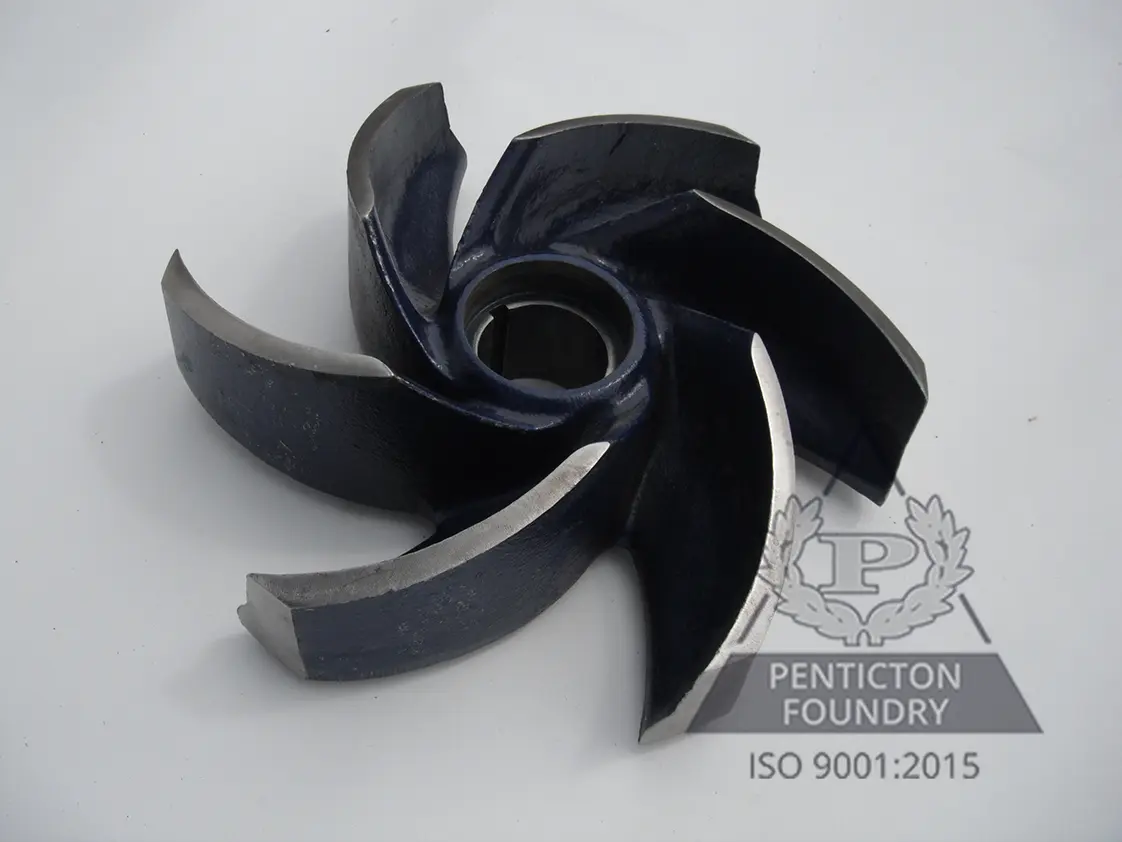

Chrome white iron impellerSearch

Oil Sands

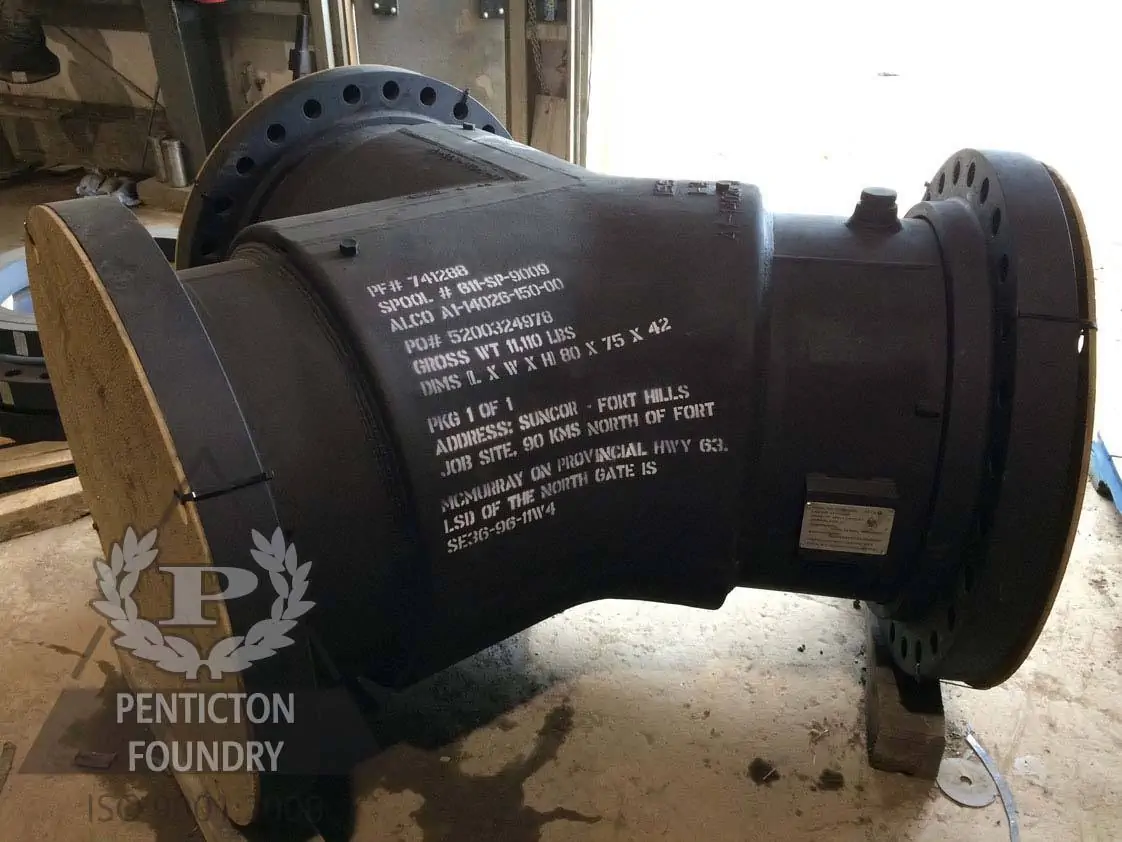

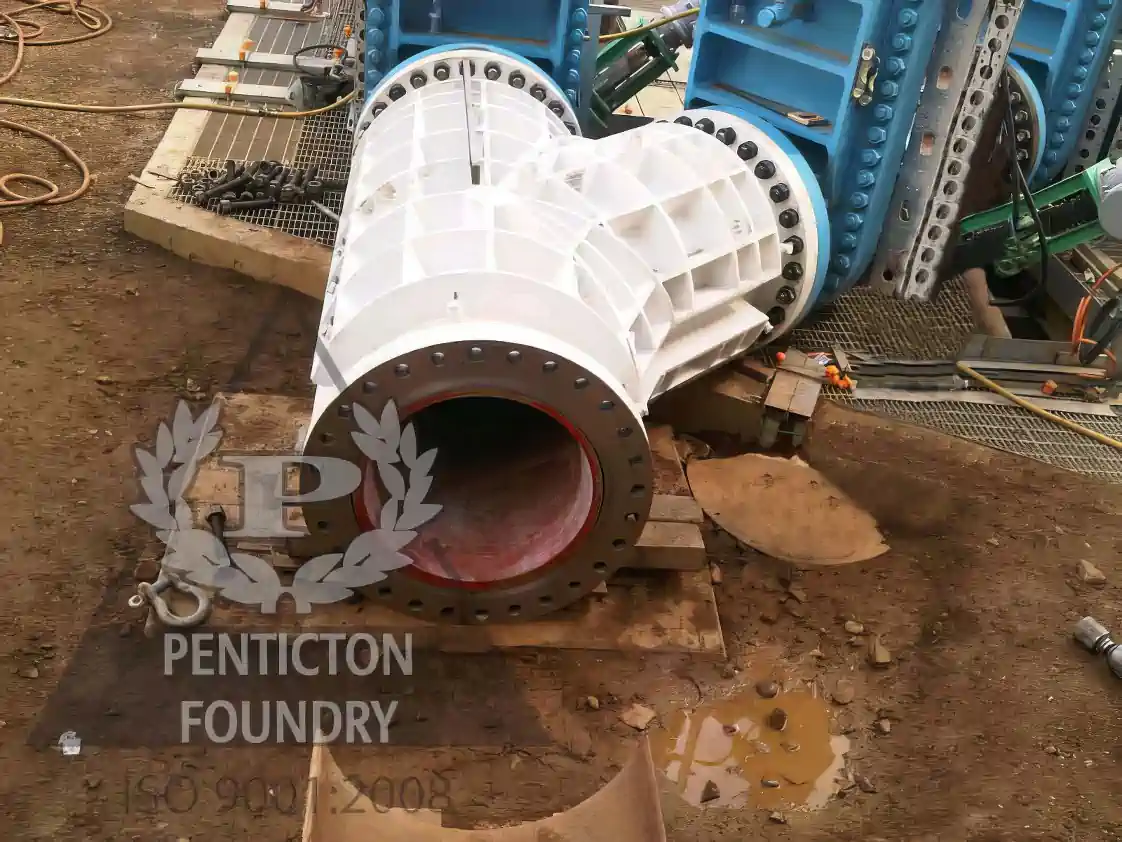

Y Lateral, which is high chrome white iron inside, and steel pressure boundary outside.Search
 Wye spool combining a steel pressure boundary and abrasion resistant chrome white iron liner.Search

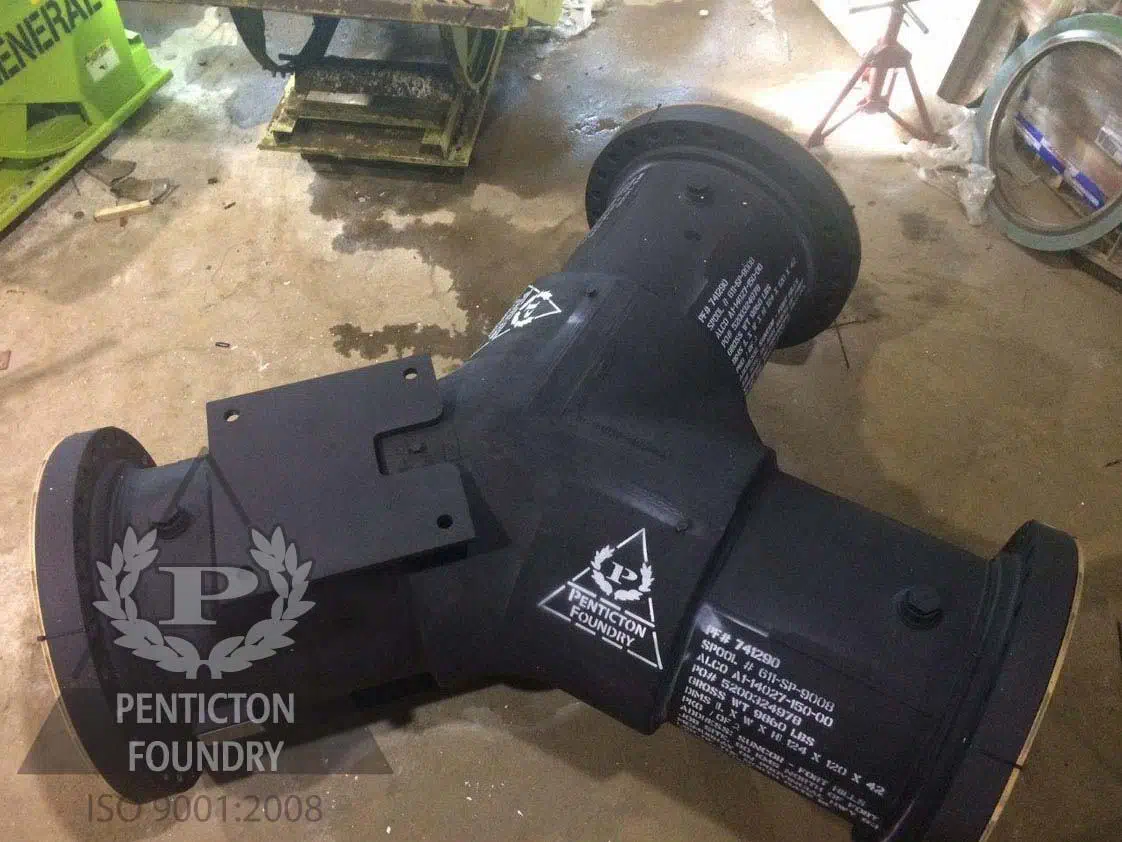

A bimetallic Oil Sands pipe spool.Search

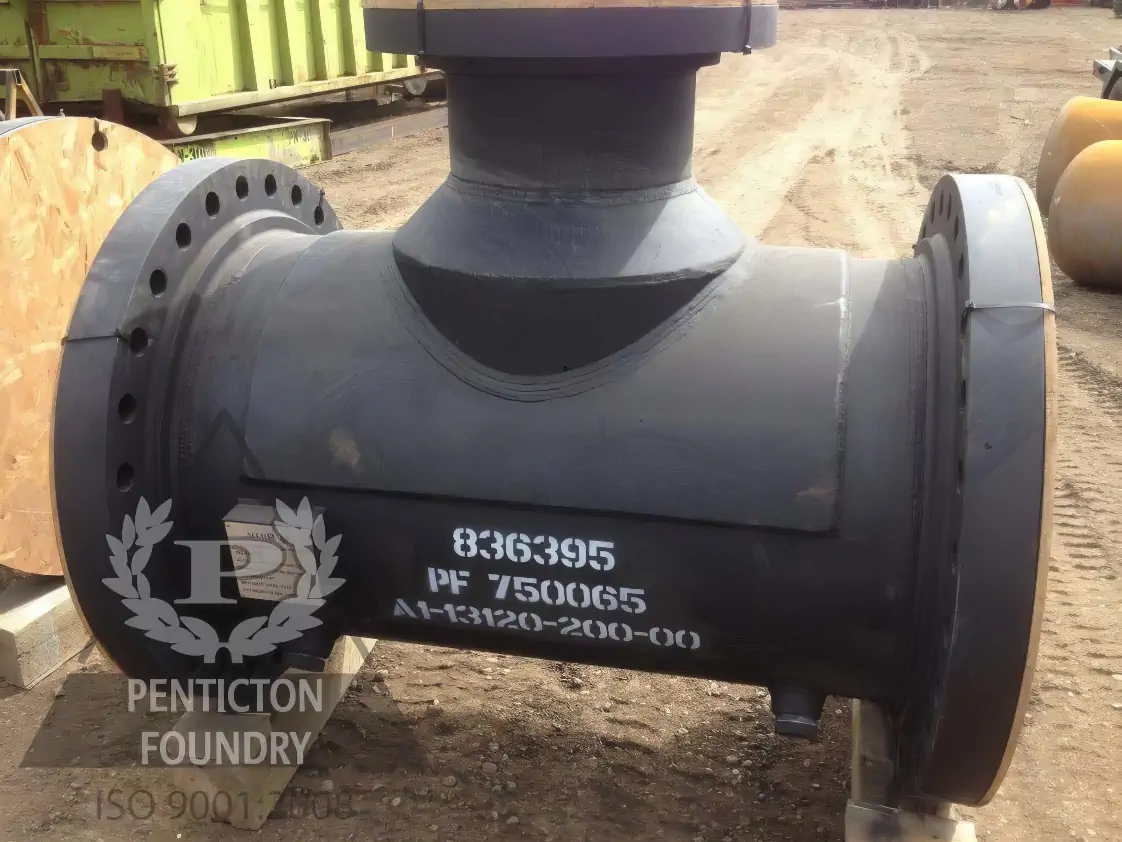

A dropout spool which is chrome white iron inside and steel pressure boundary outside.Search

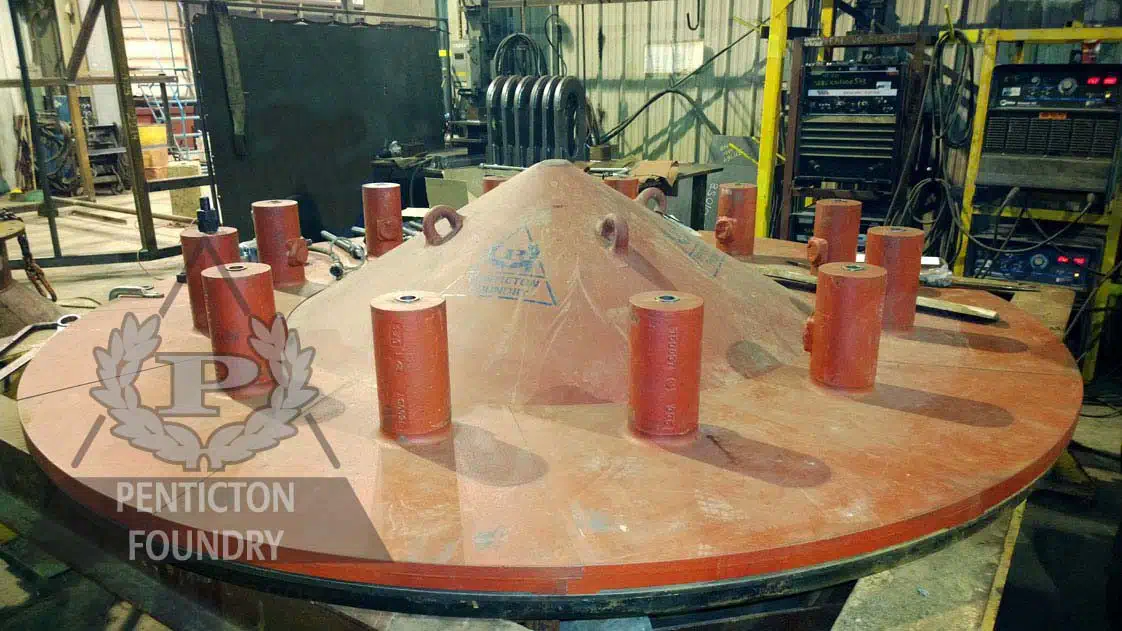

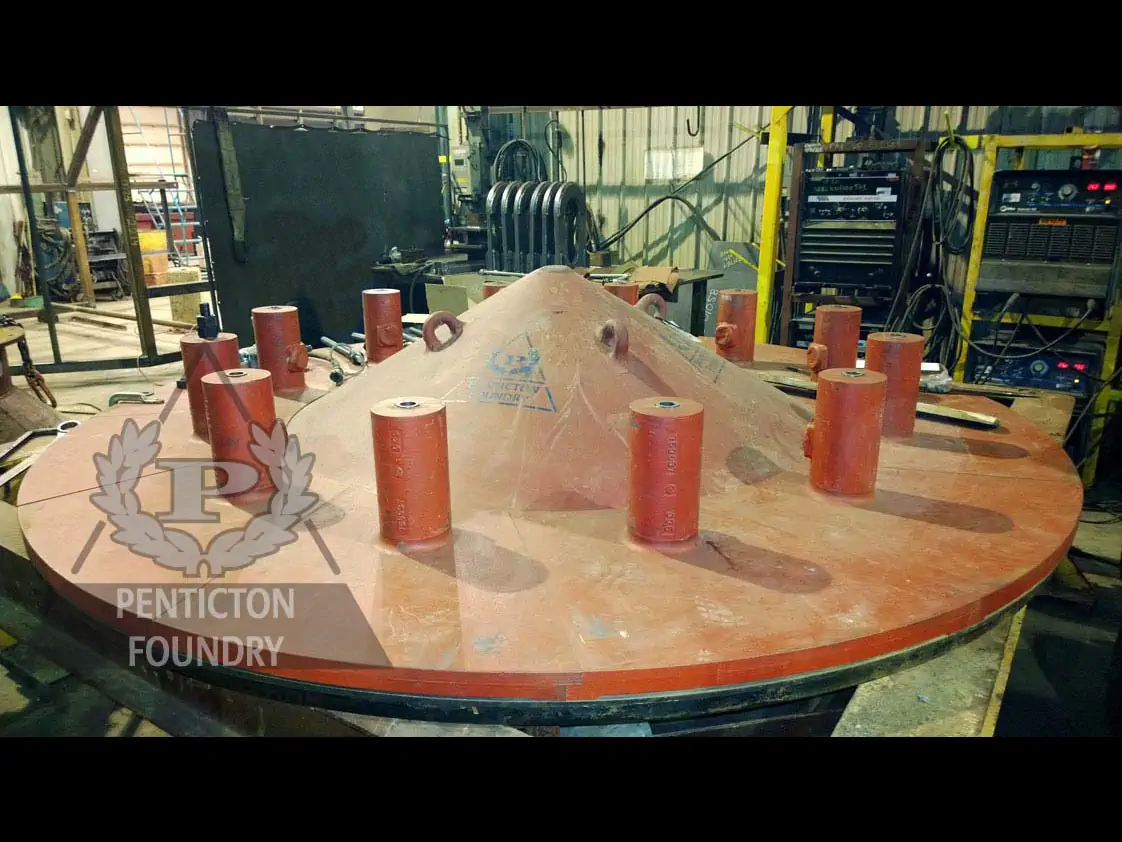

High chrome white iron feedwell distributor (witch’s hat) on steel backing.Search

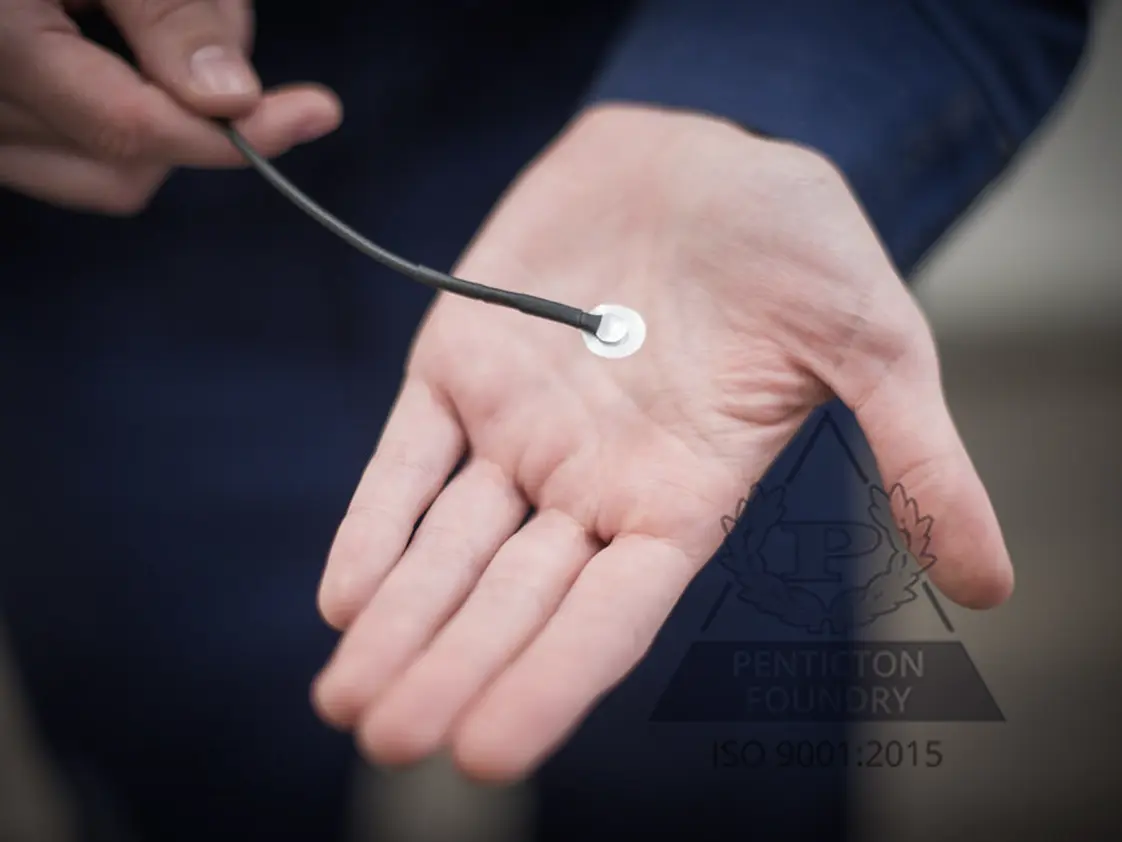

Wear sensor For-Cast Armoured Chrome White Iron Lined PipeSearch

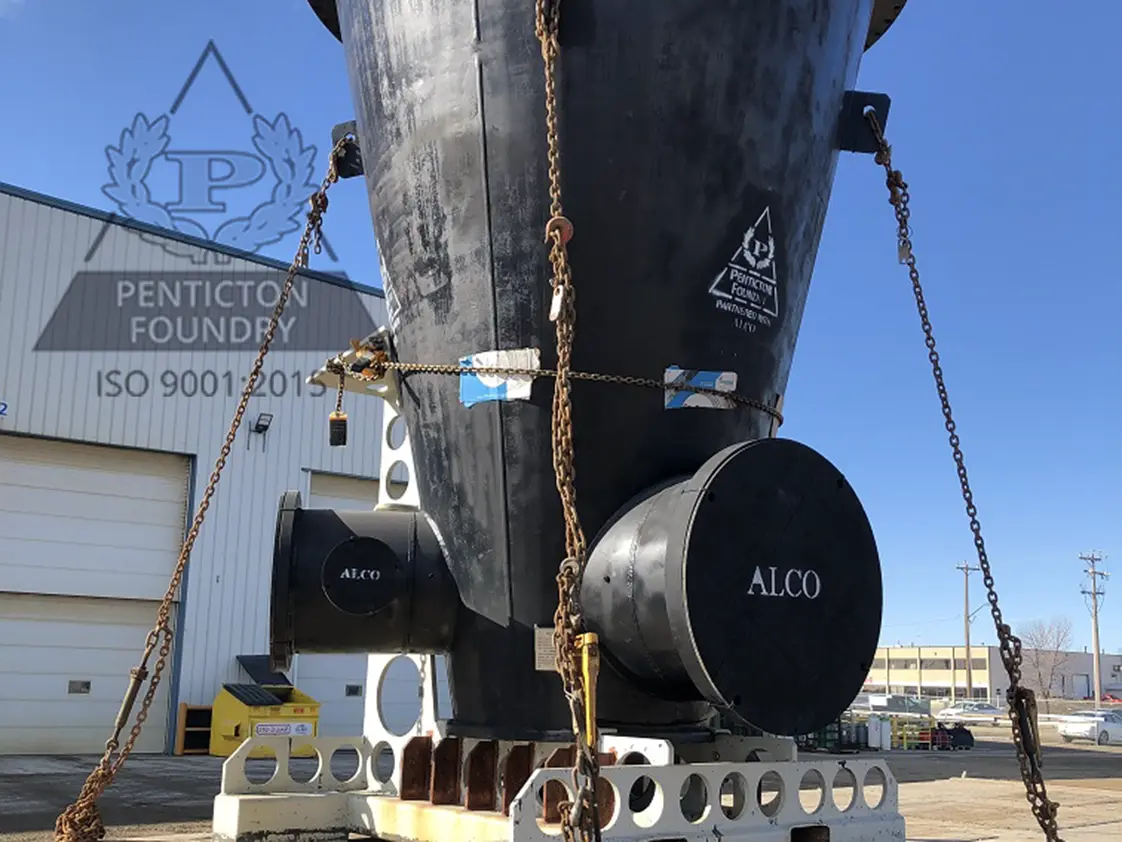

Lower sump lined with high chrome white iron linersSearch

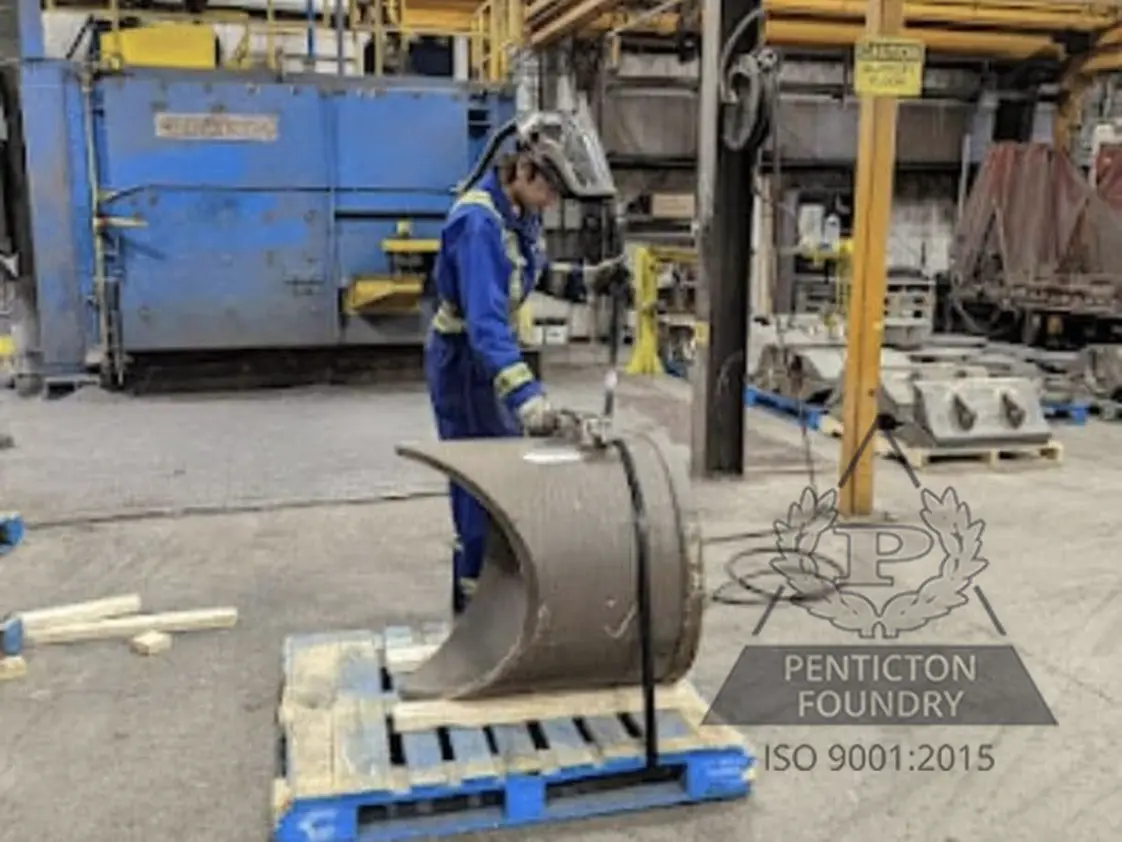

Spool part for For-Cast Armoured PipeSearch

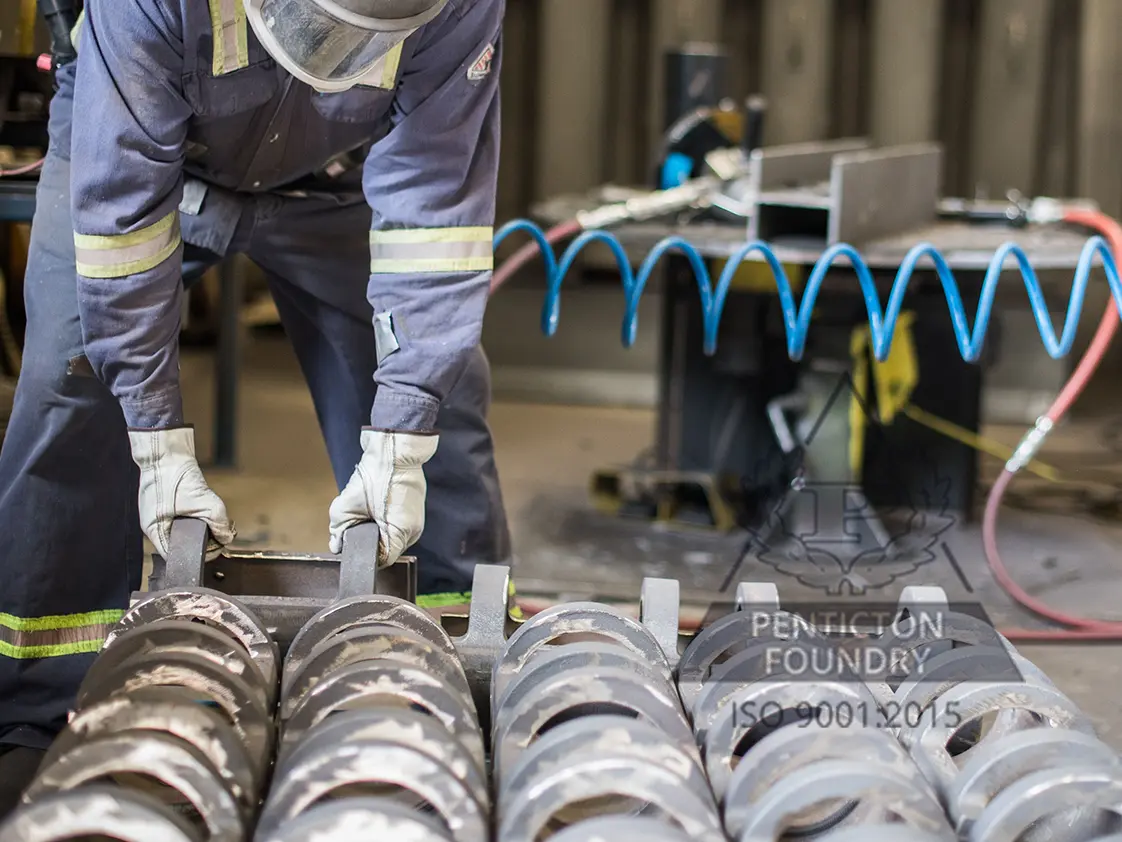

Shed deck castings for the Oil SandsSearch

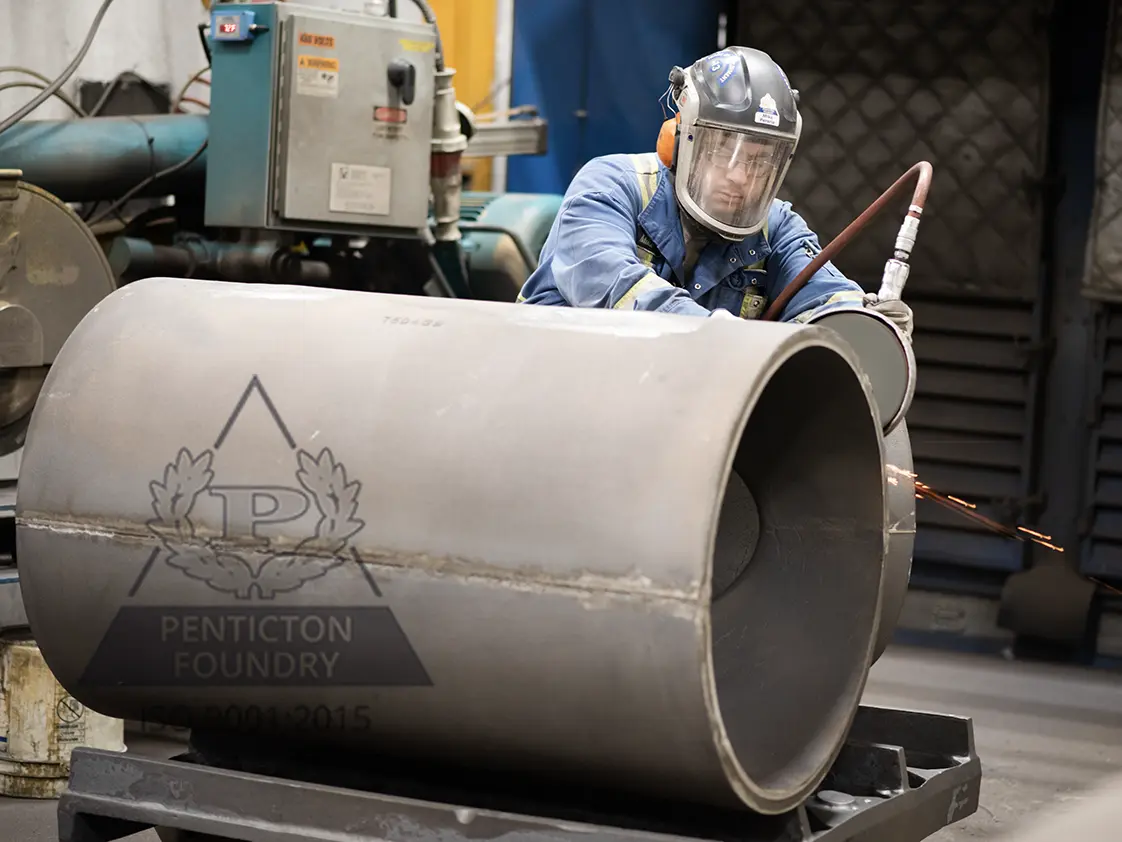

Chrome white iron liner for For-Cast Armoured PipeSearch

OEM

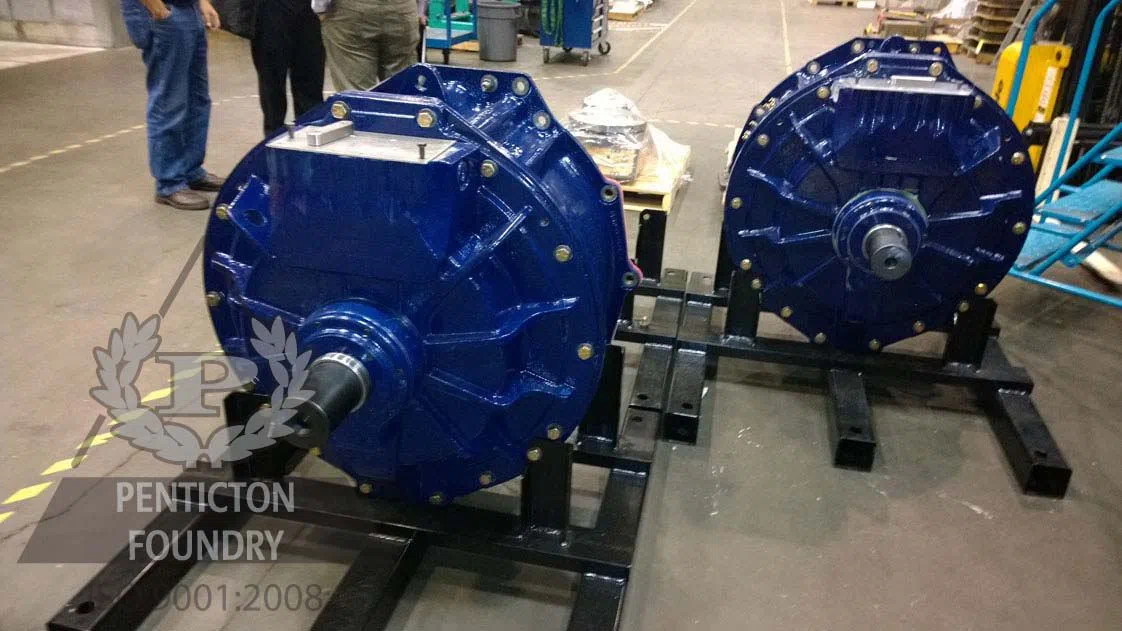

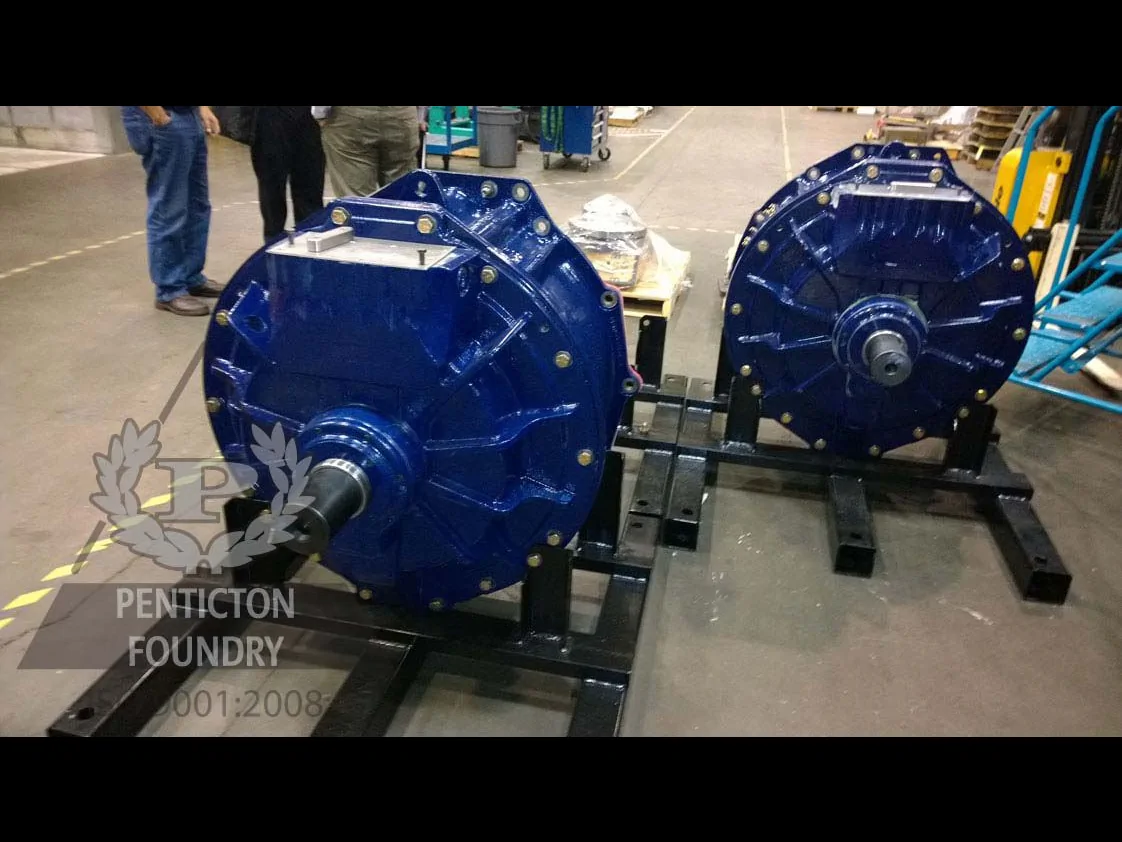

Clutch housing made in ductile iron.Search

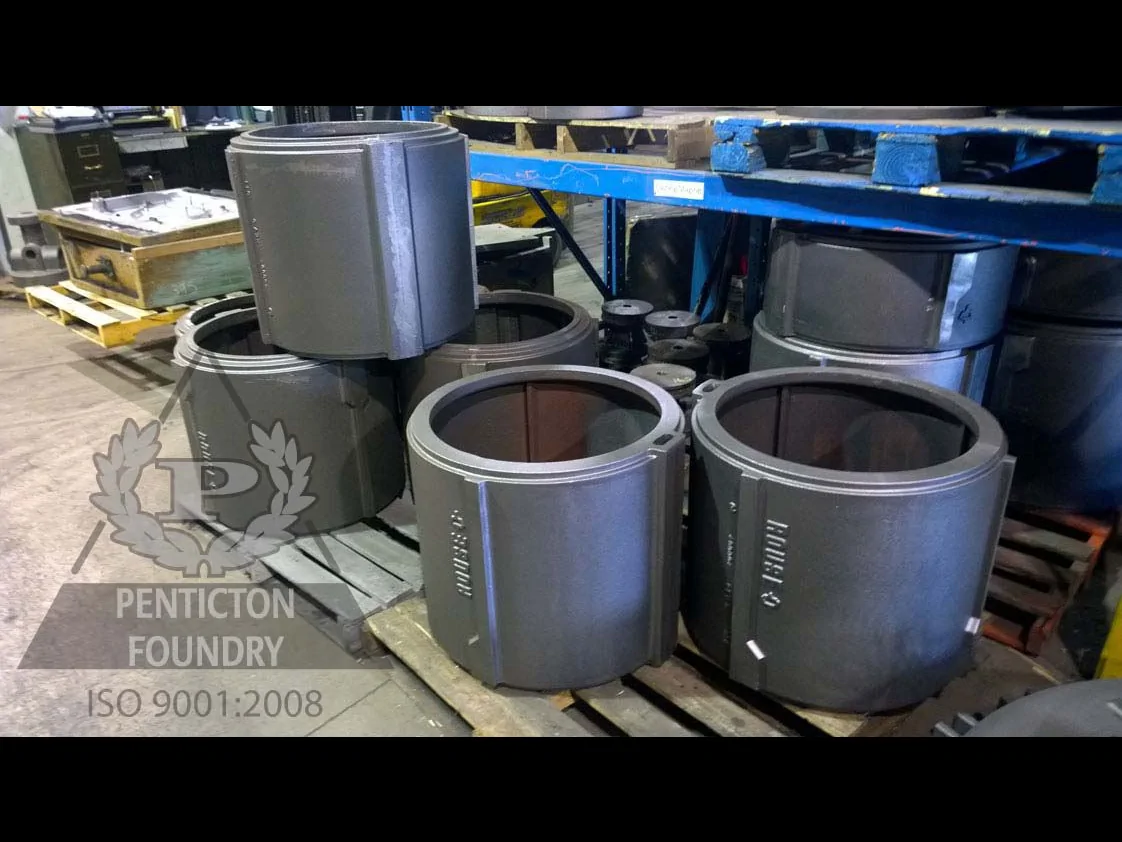

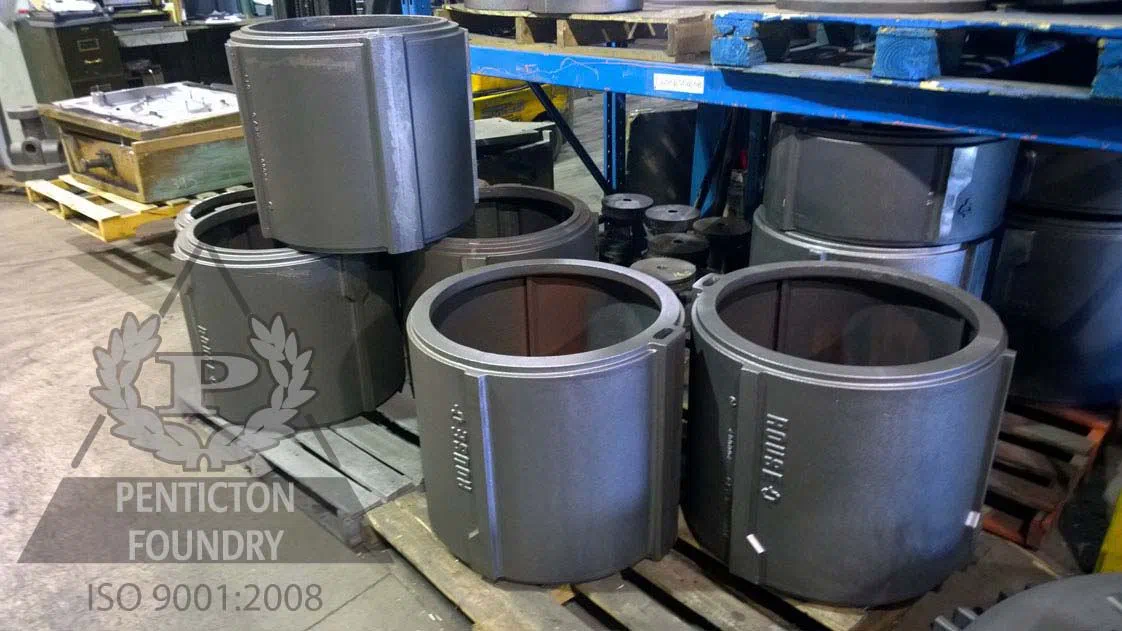

A ductile iron housing used for power transmission.Search

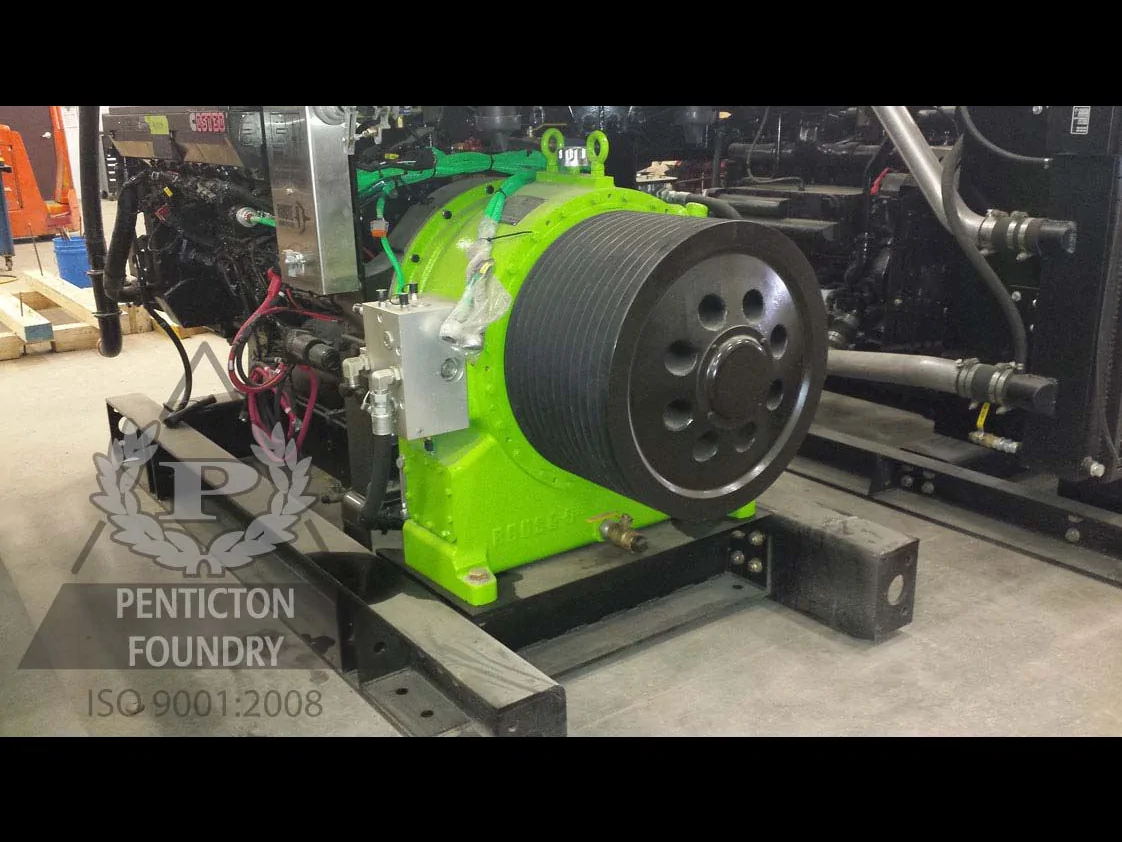

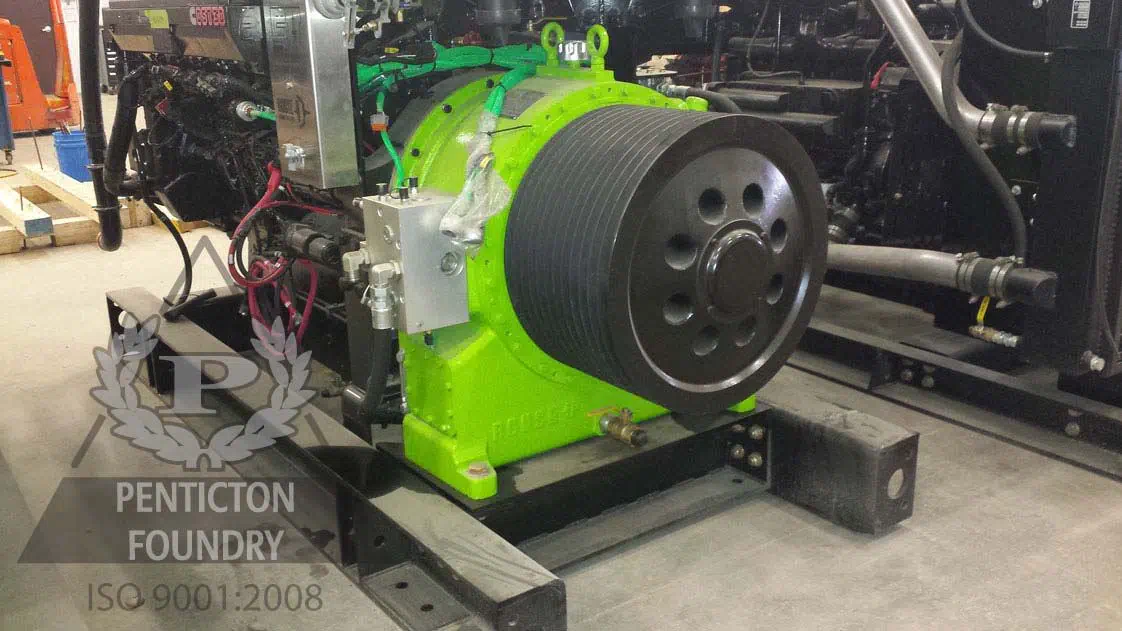

A ductile iron engine mounted transmission.Search

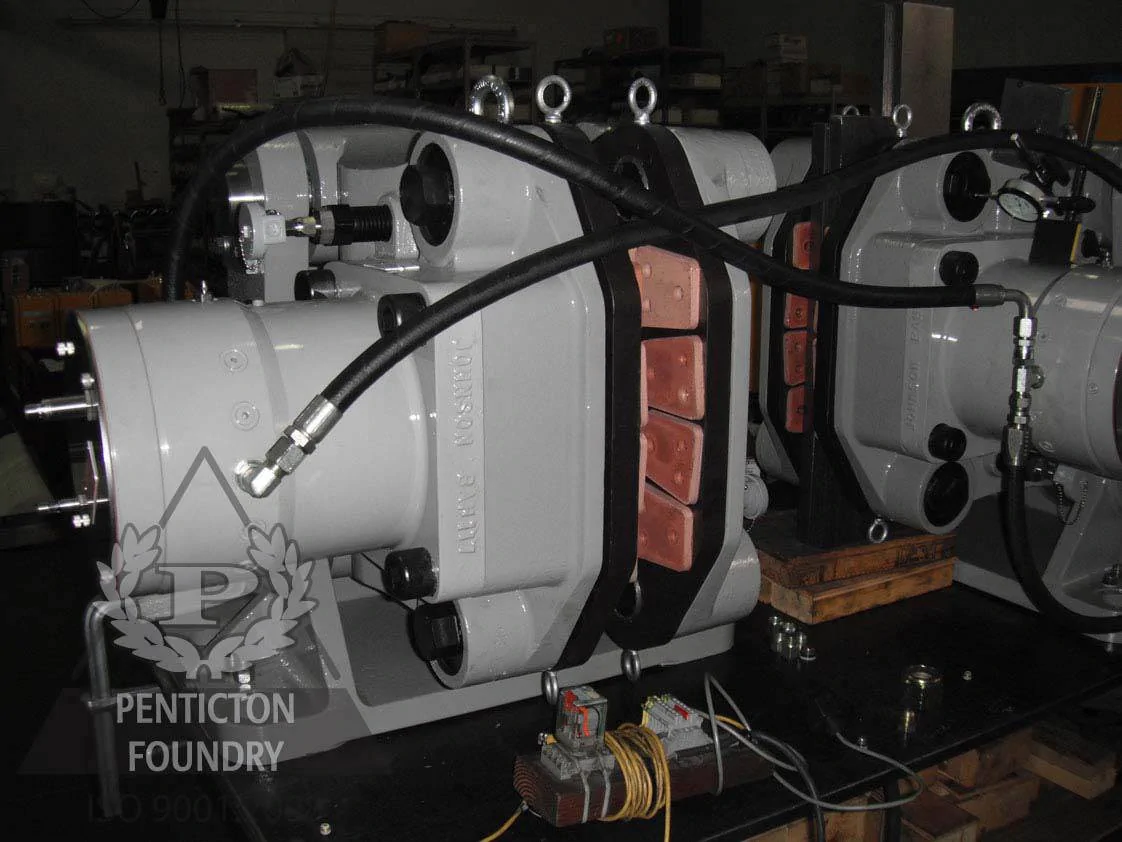

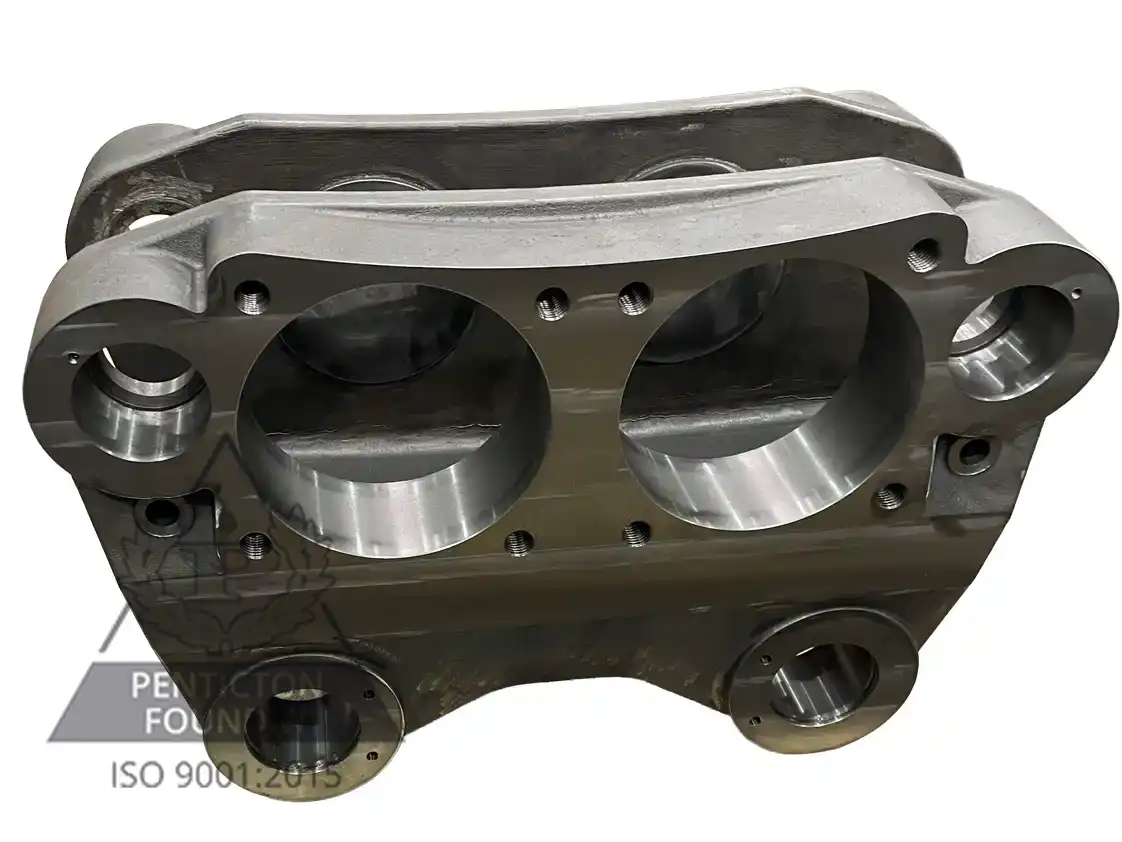

A large scale brake caliper made in ductile iron.Search

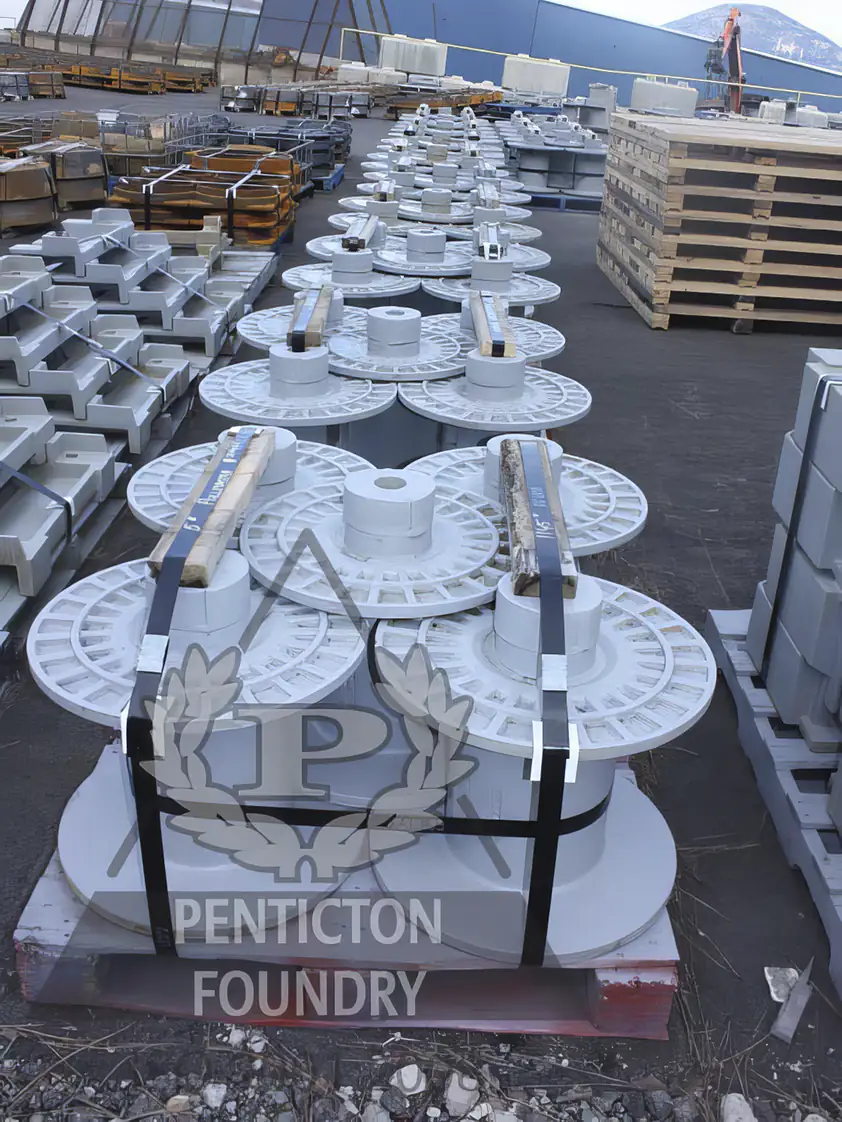

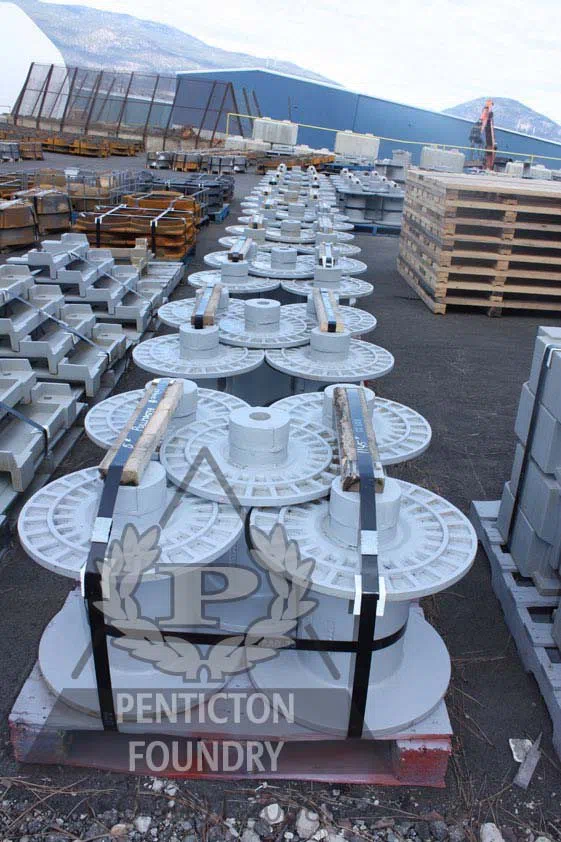

Cable drums for the winch industry made of ductile iron.Search

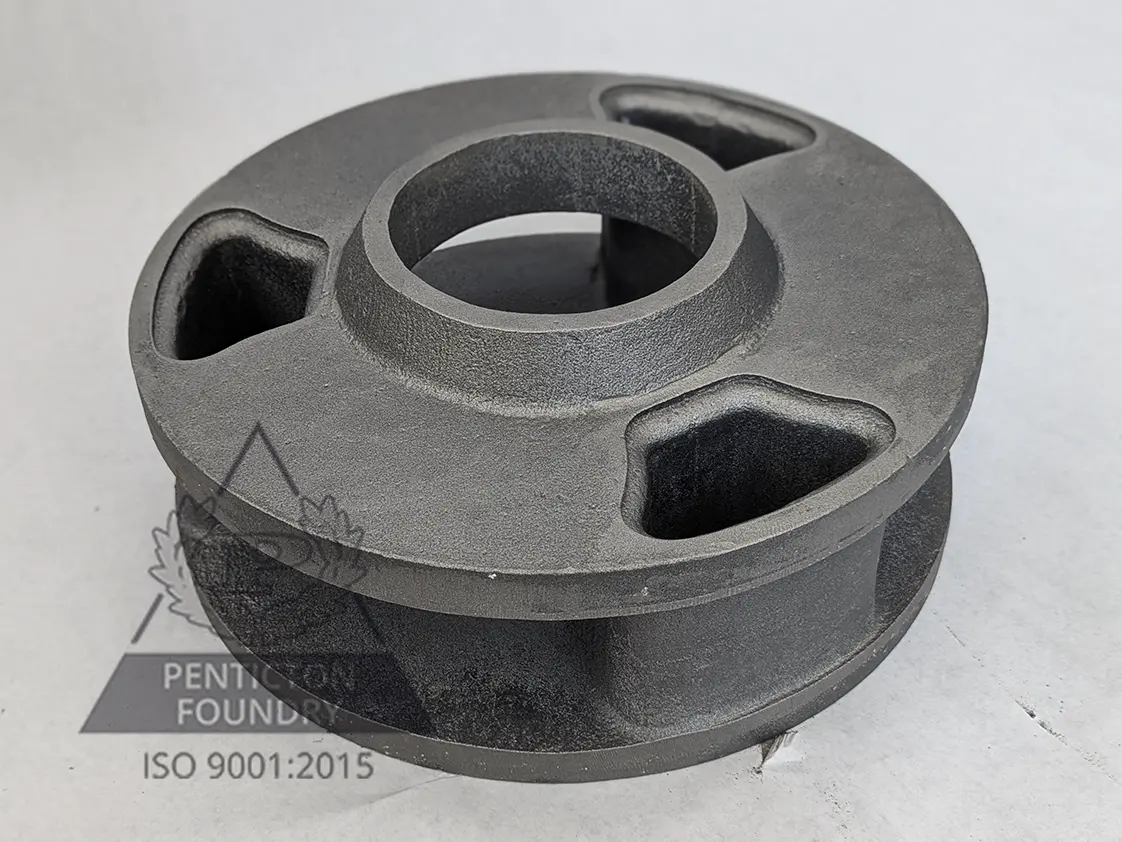

A planetary hub in ductile iron for the winch industrySearch

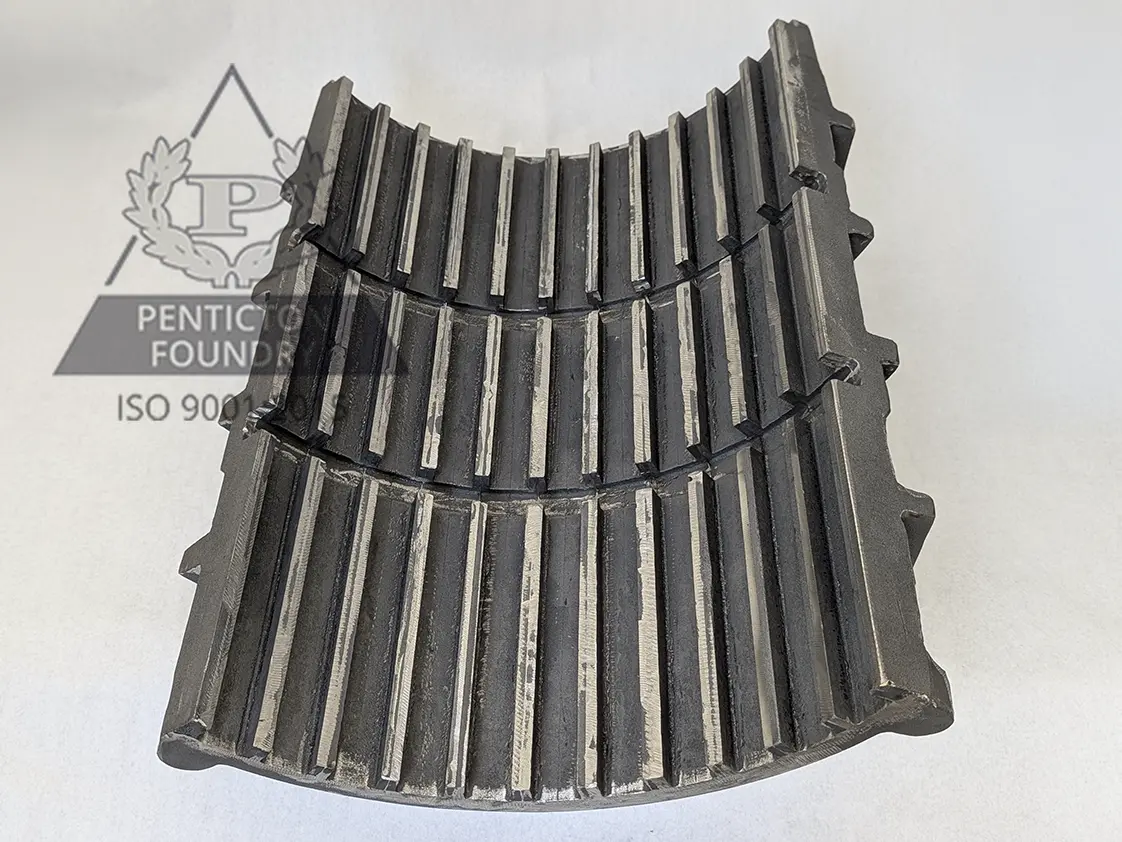

Ductile iron shoe segment for adjustable main shaft bearing, hydroelectric industry.Search

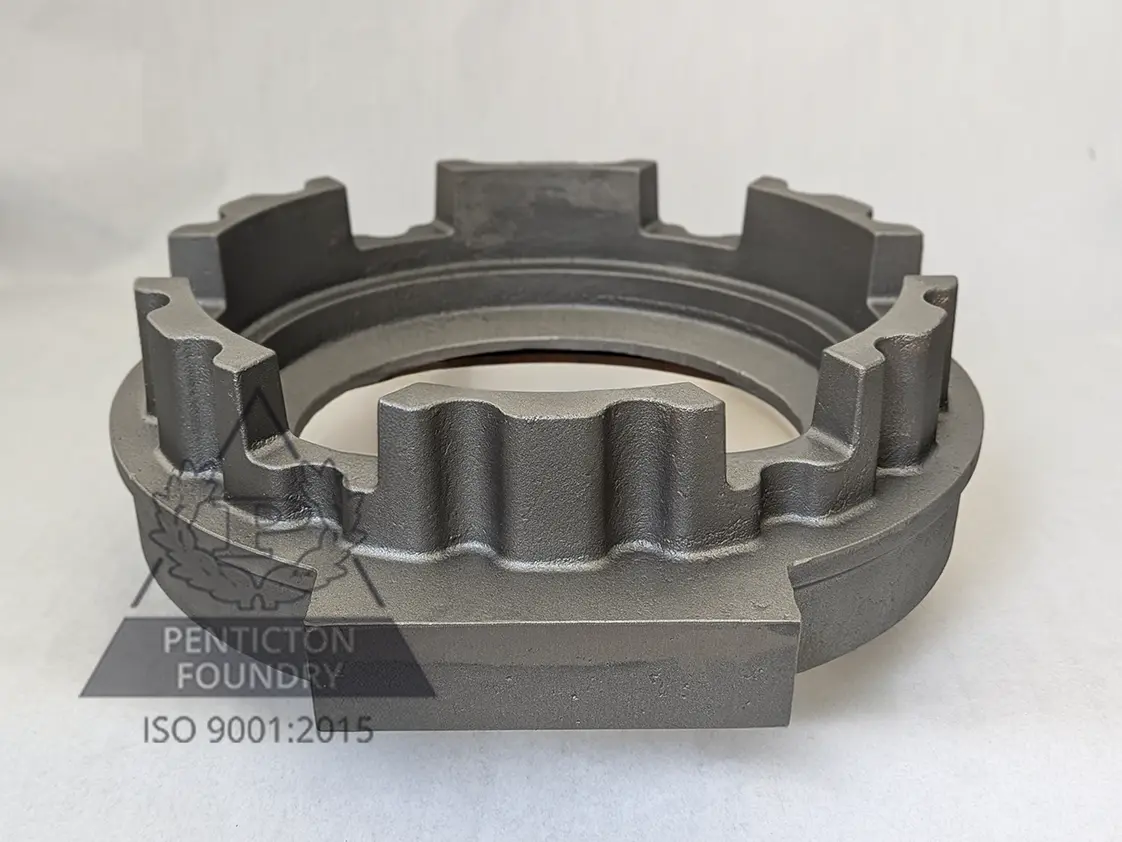

Ductile iron transmission frame for the power transmission industrySearch

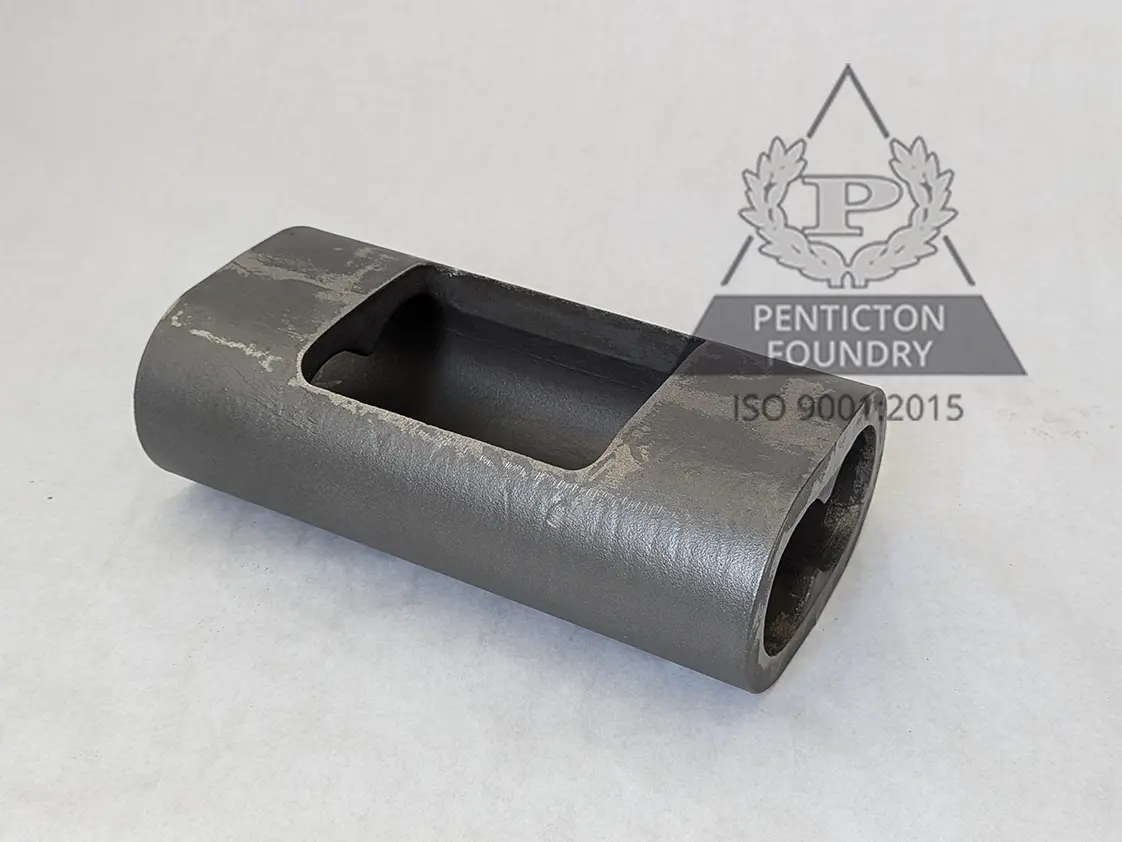

High chrome white iron extruder partSearch

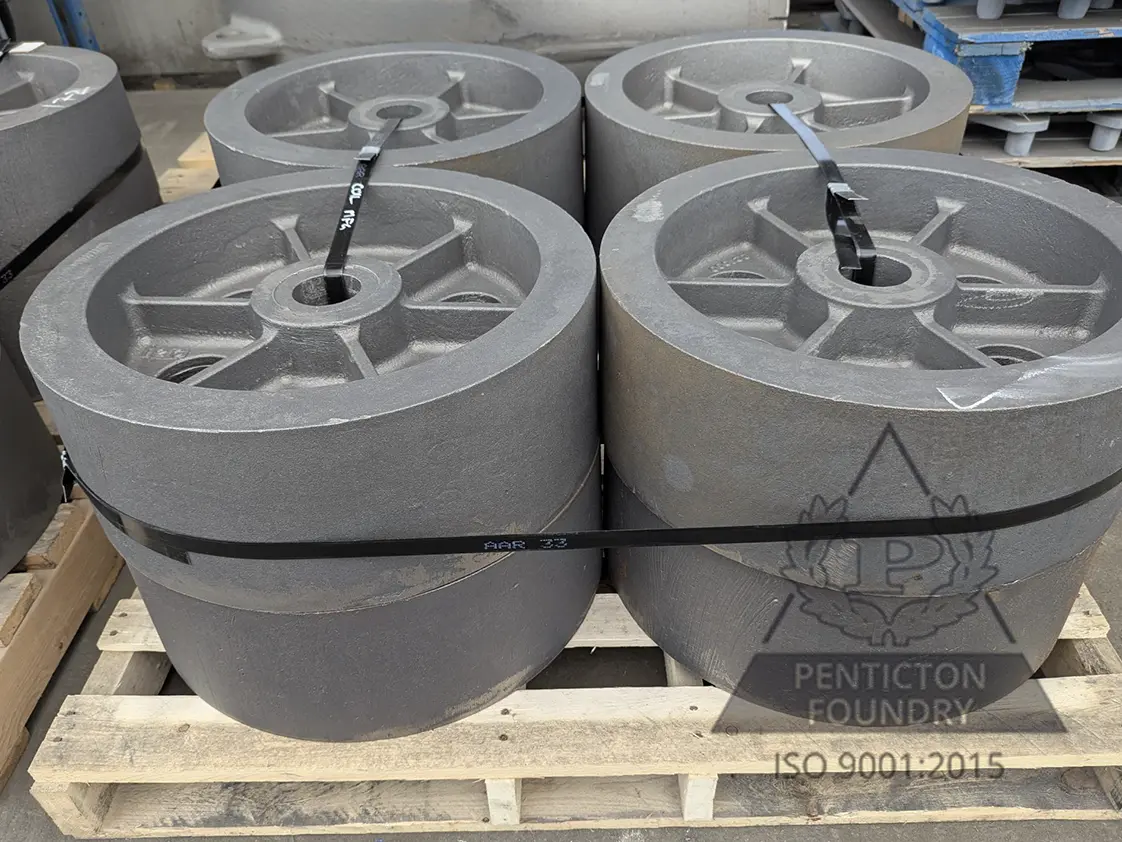

Ductile iron trunnion wheel for the forestry industrySearch

Hydraulic Fracturing

The discharge end of a chrome white iron pump casing, showing integral splitter vane.Search

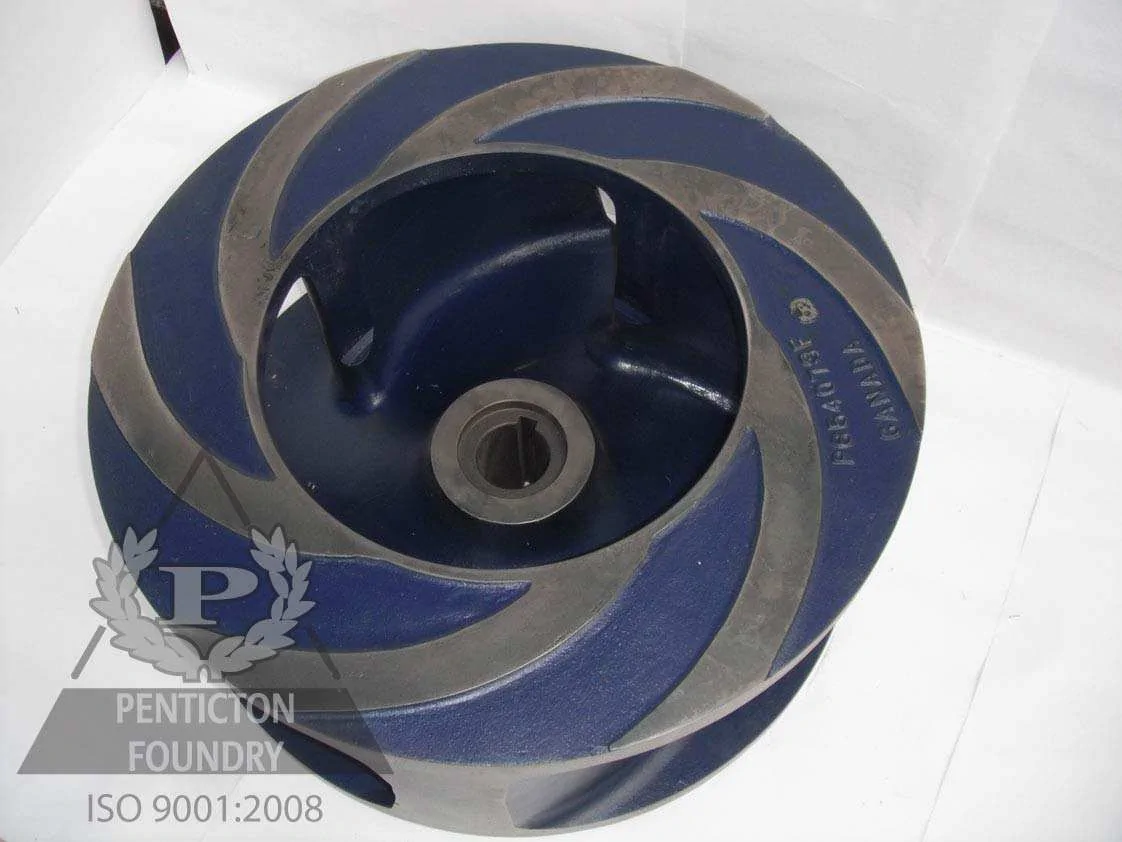

High chrome white iron fully machined blender tub impeller.Search

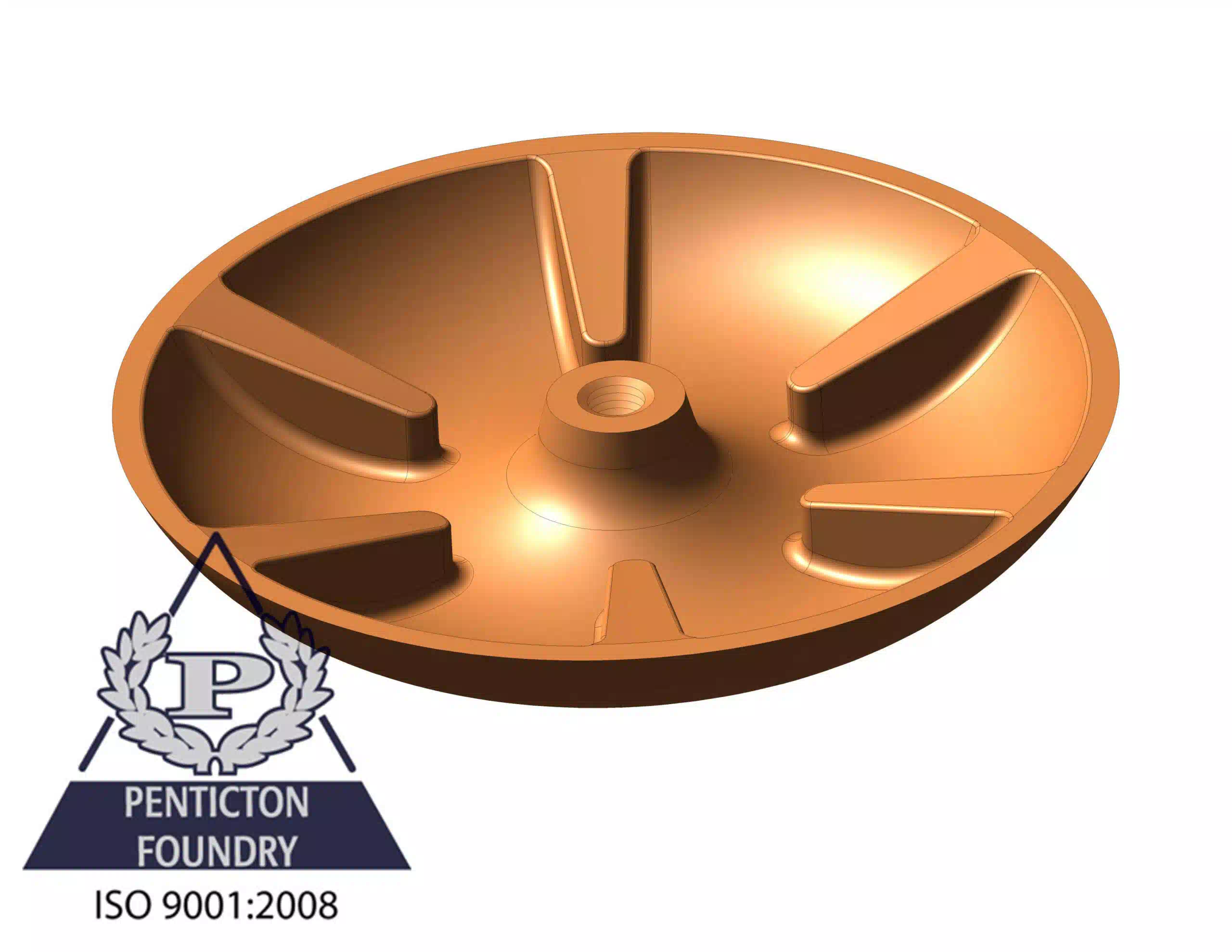

A chrome white iron, ASTM A532, sand slinger used in the hydraulic fracturing industry.Search

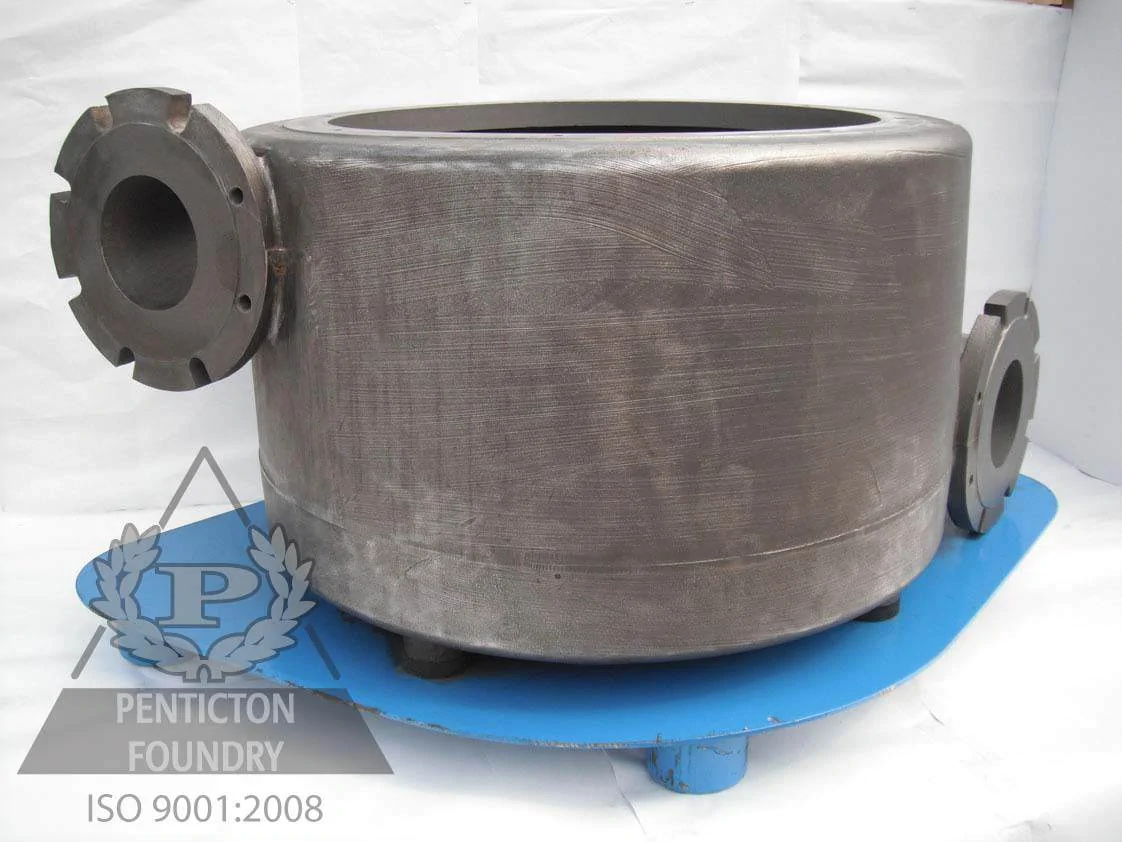

A fully machined chrome white iron frac blender tub.Search

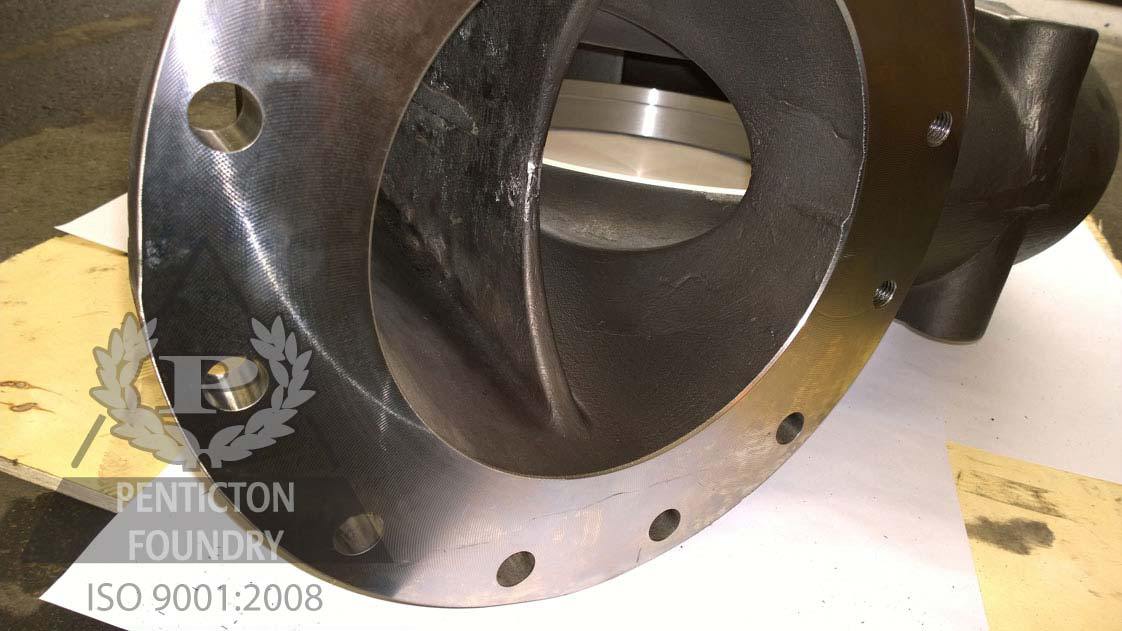

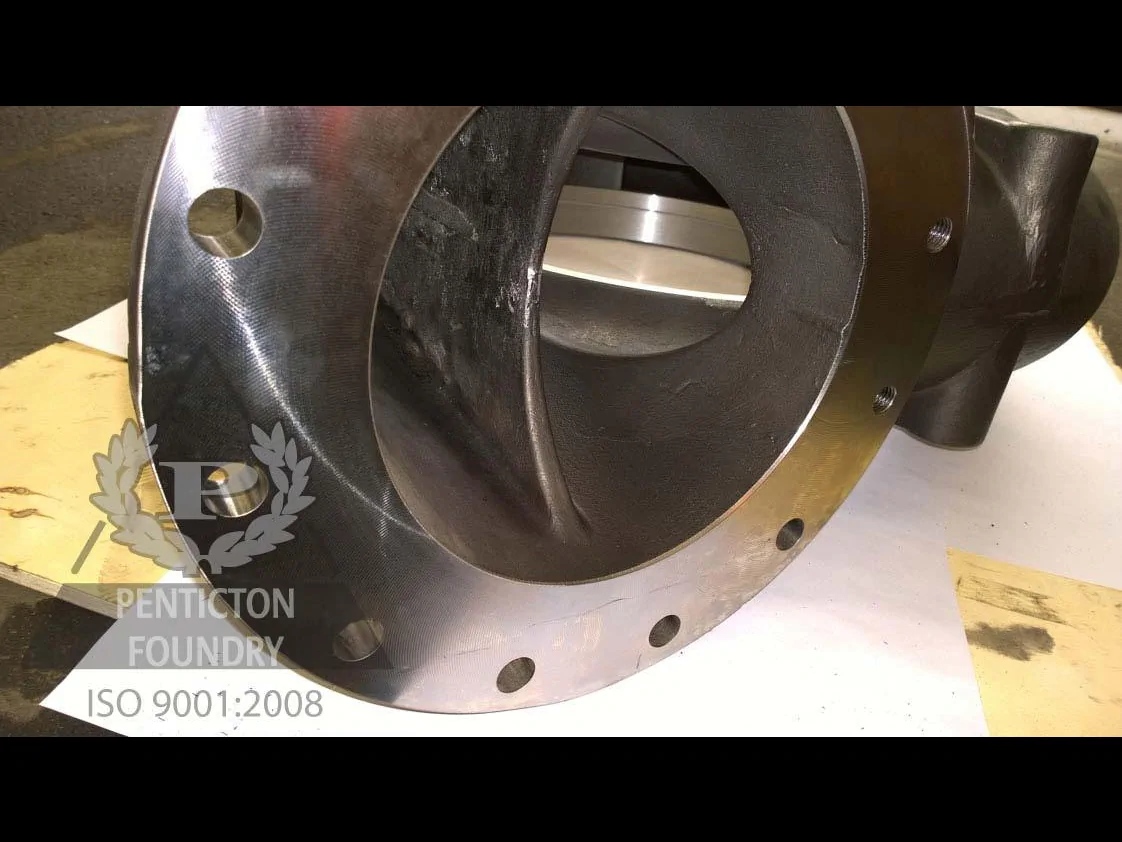

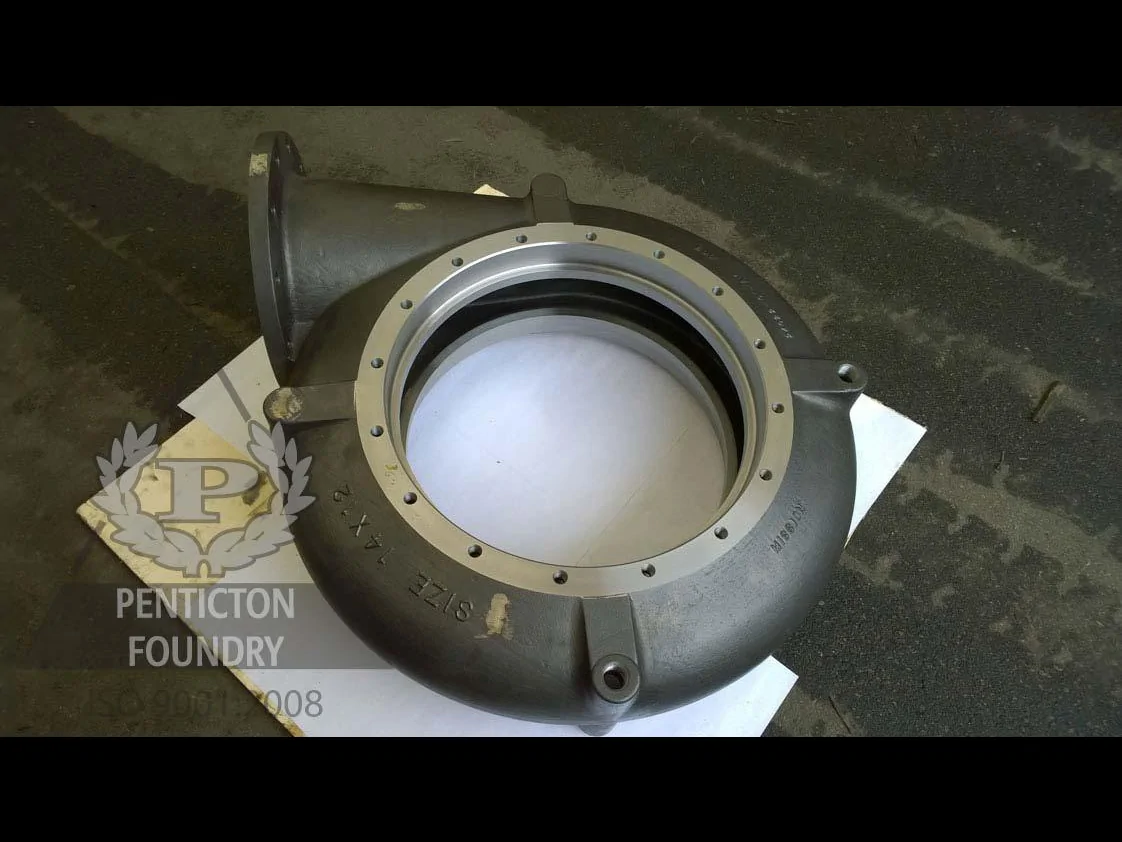

Chrome white iron frac pump casing.Search

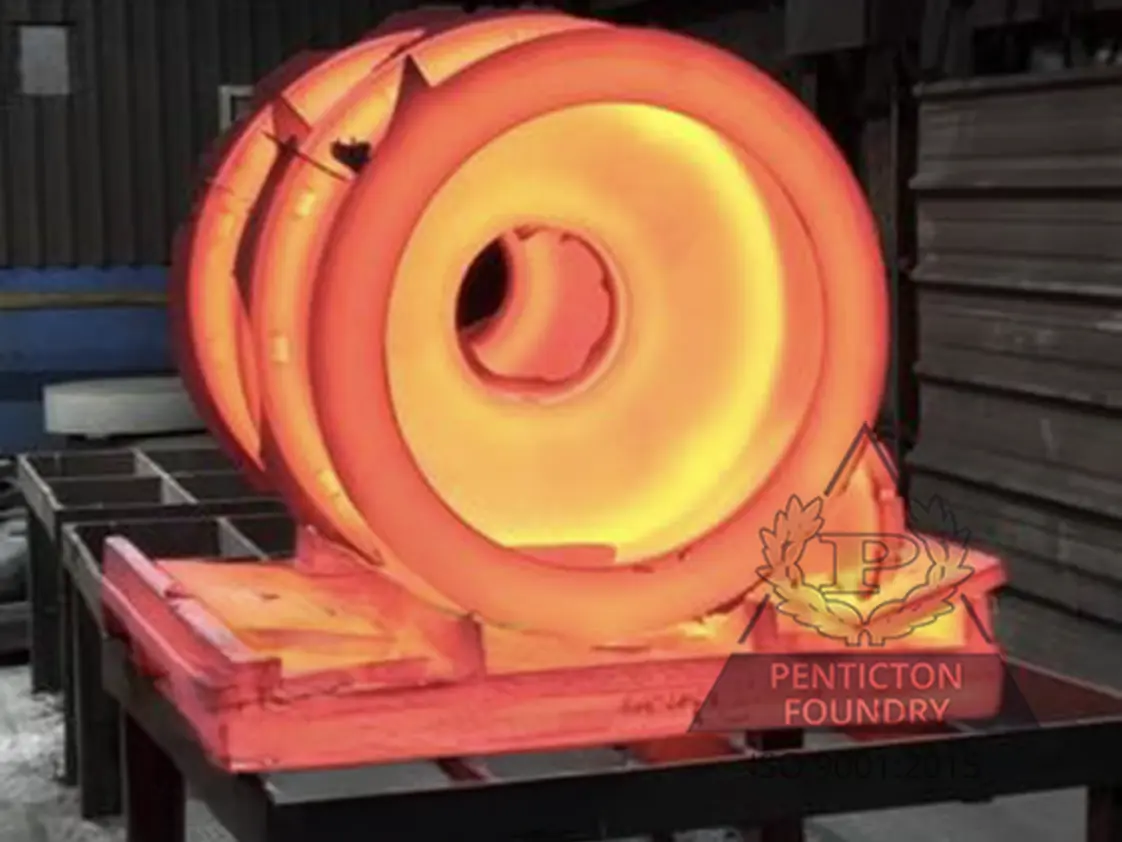

Heat treating a chrome white iron housing for a hydraulic fracturing mixing tubSearch
High chrome white iron blender impellerSearch

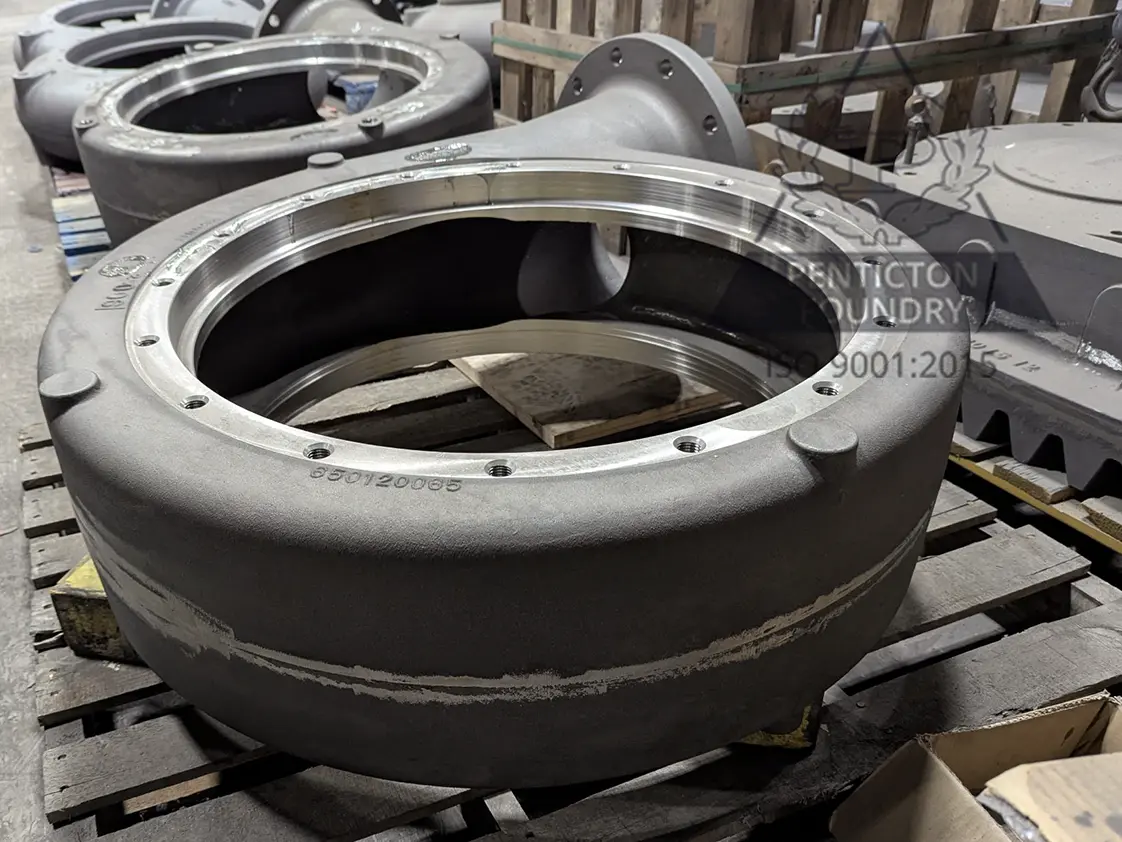

Fully machined, high chrome white iron hydraulic fracturing pumpSearch

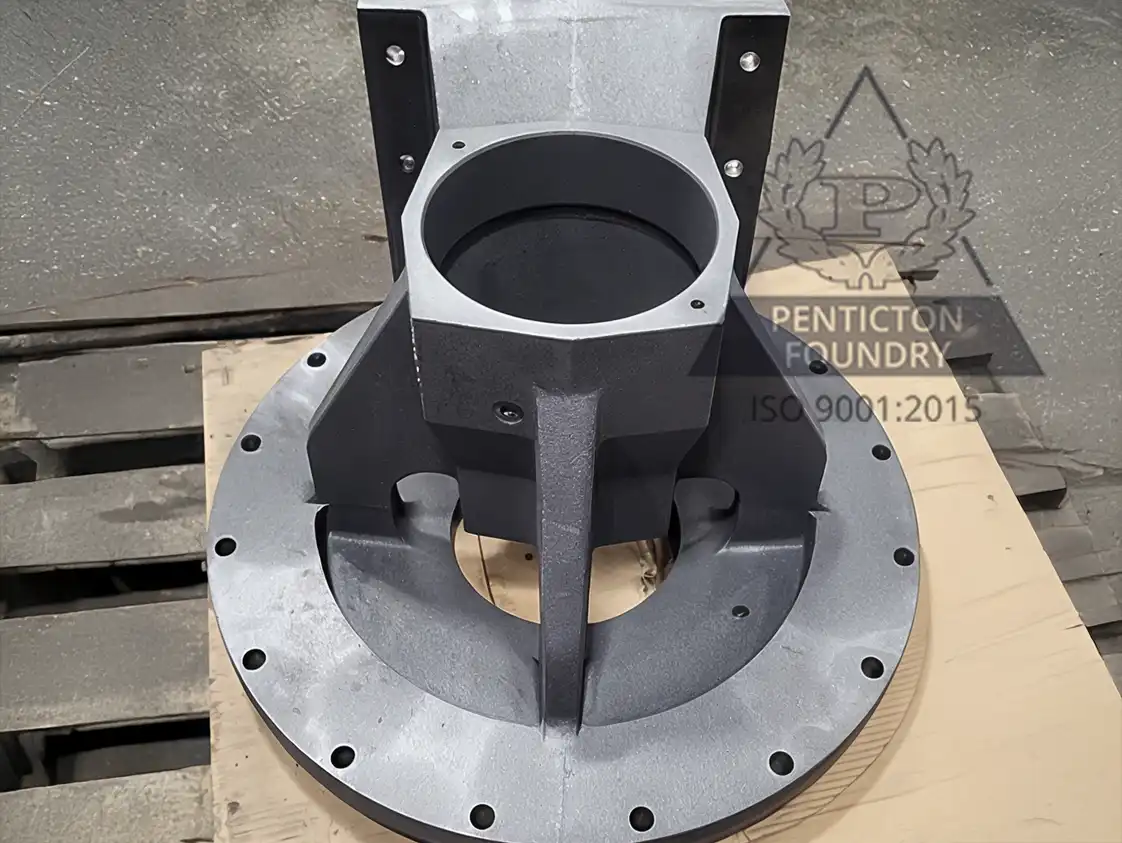

Fully machined ductile iron frame casting for a frack casing and impeller.Search

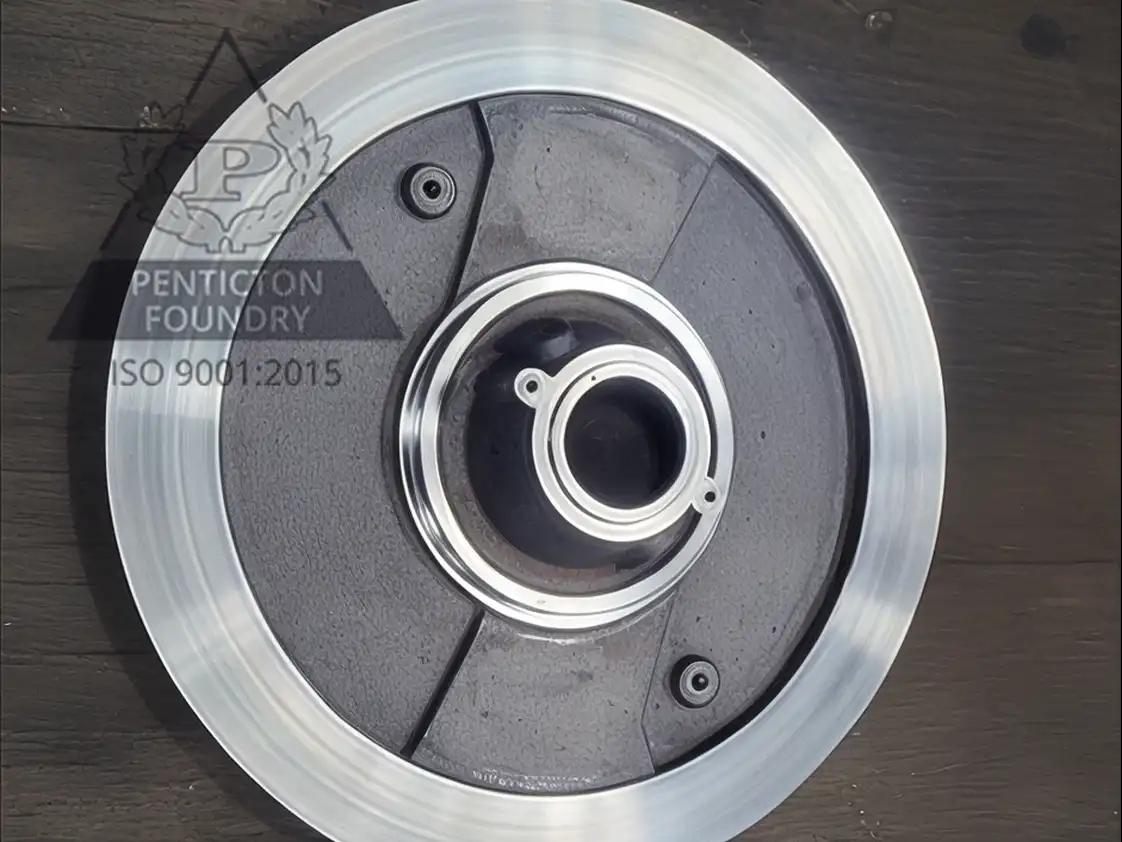

Fully machined high chrome white iron cover for frack casing and impellerSearch

Pump

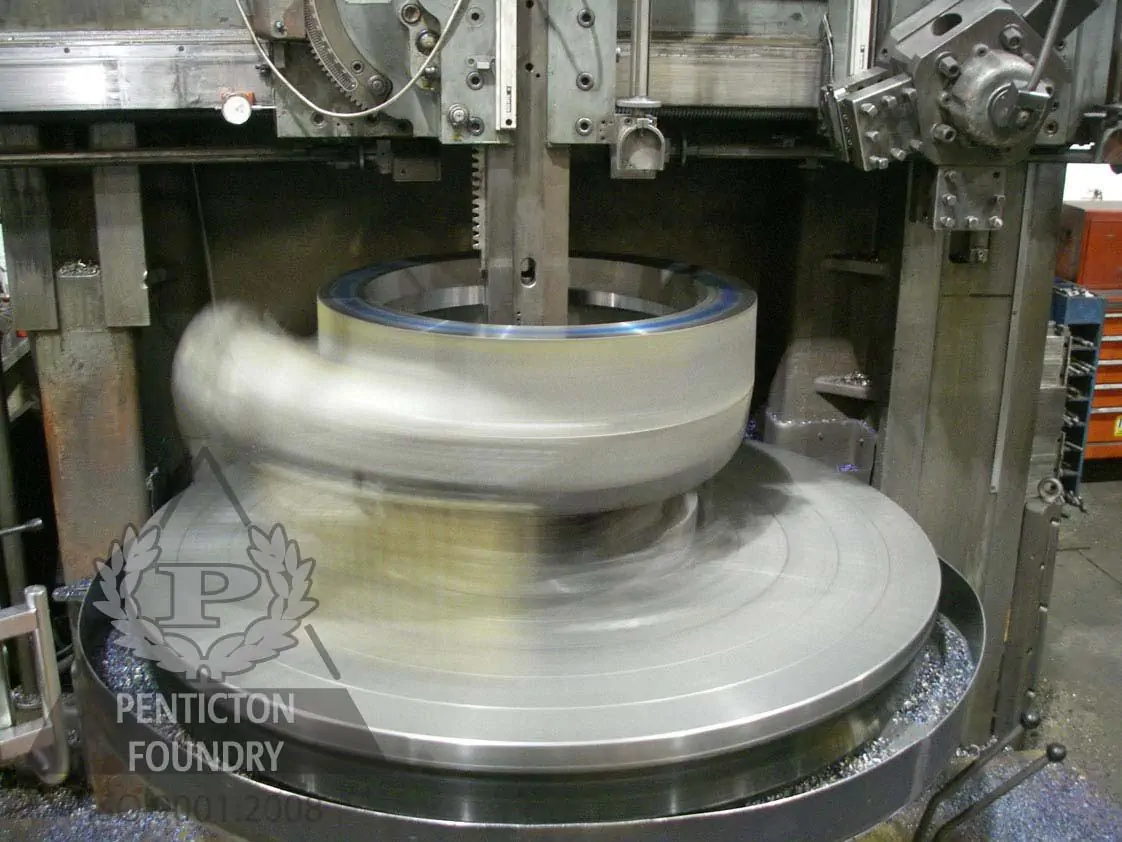

Chrome white iron pump casing being machined.Search

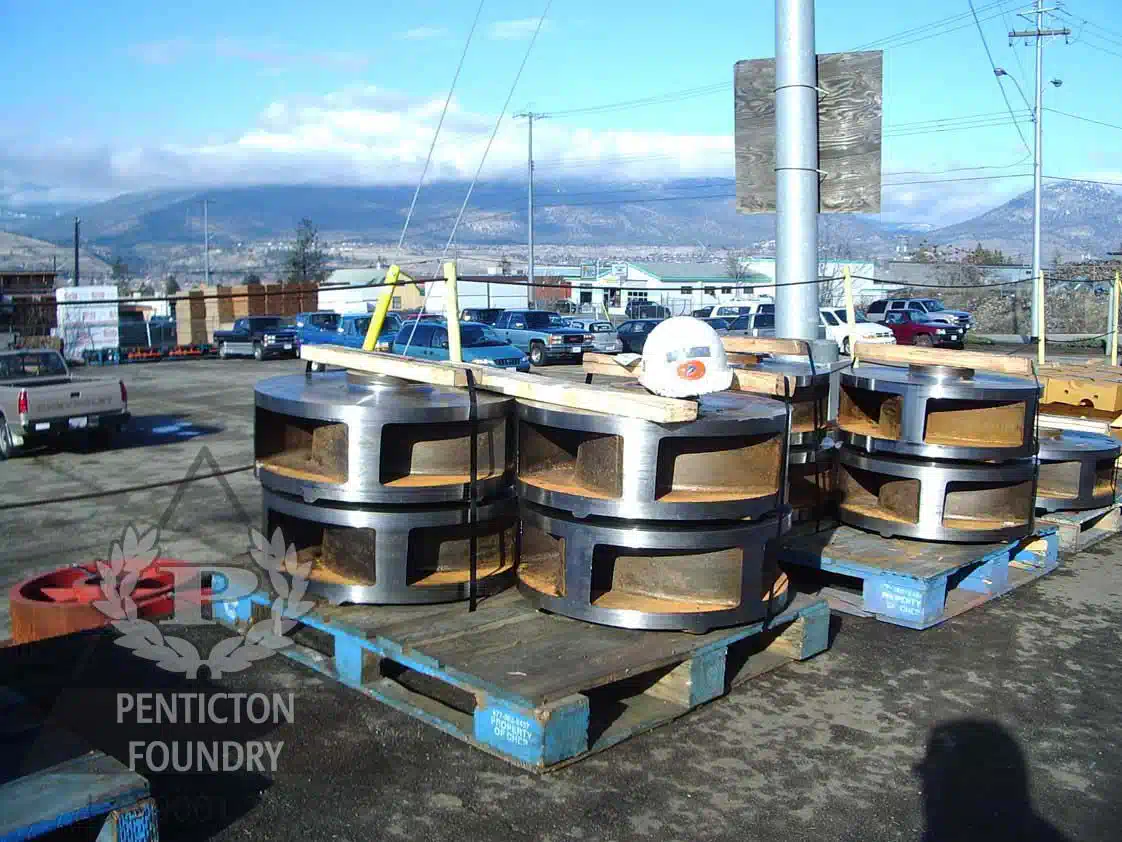

Solid high chrome white iron machined pump impellers.Search

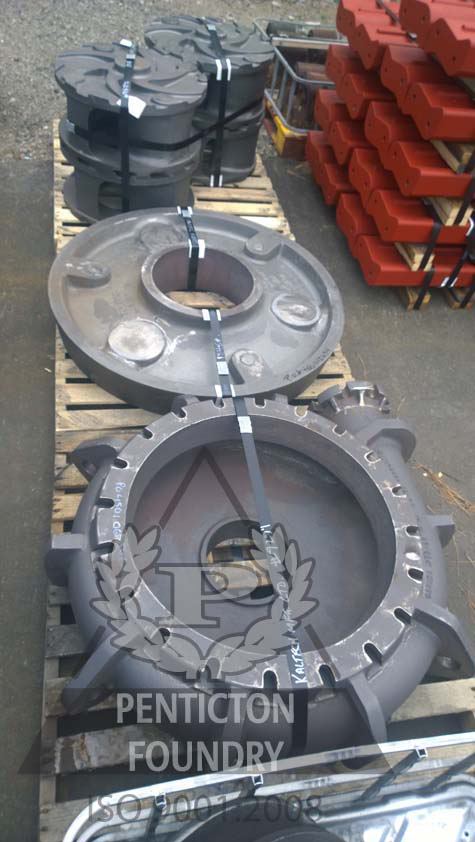

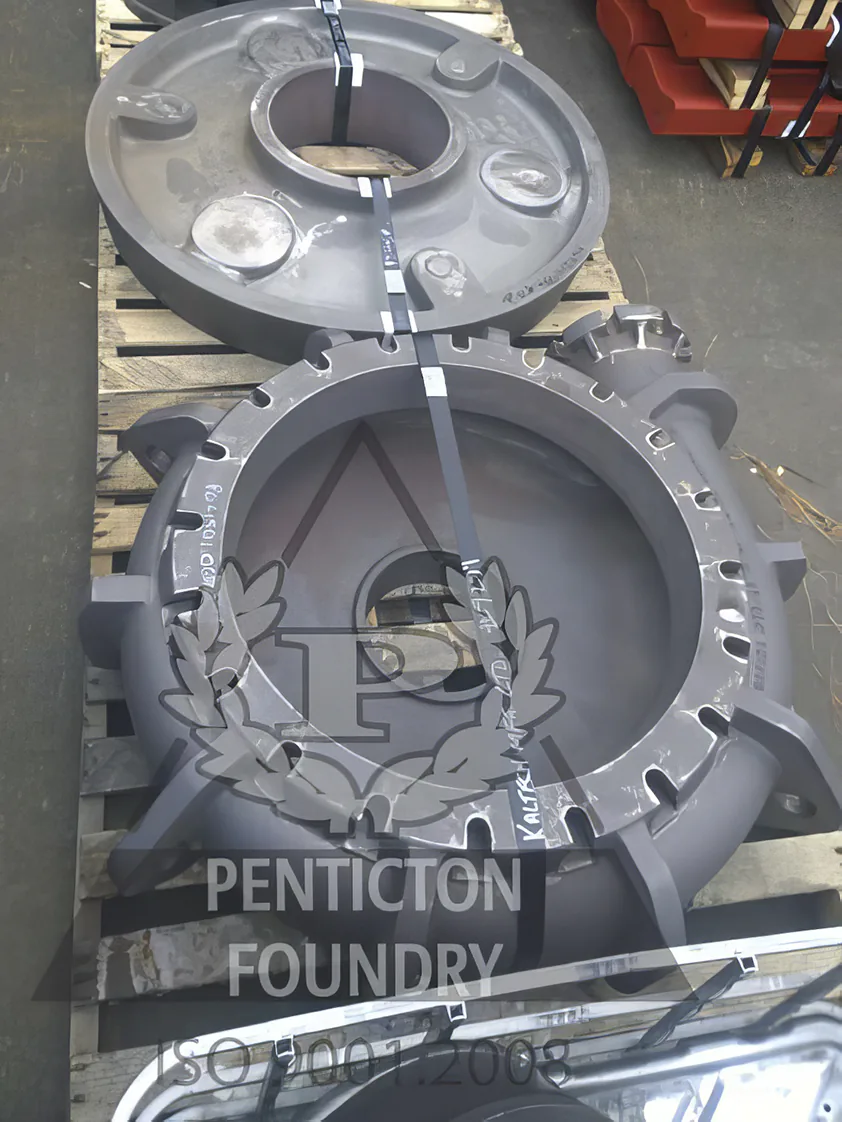

Miscellaneous chrome white iron pump parts including casings, suction liner and impellers.Search

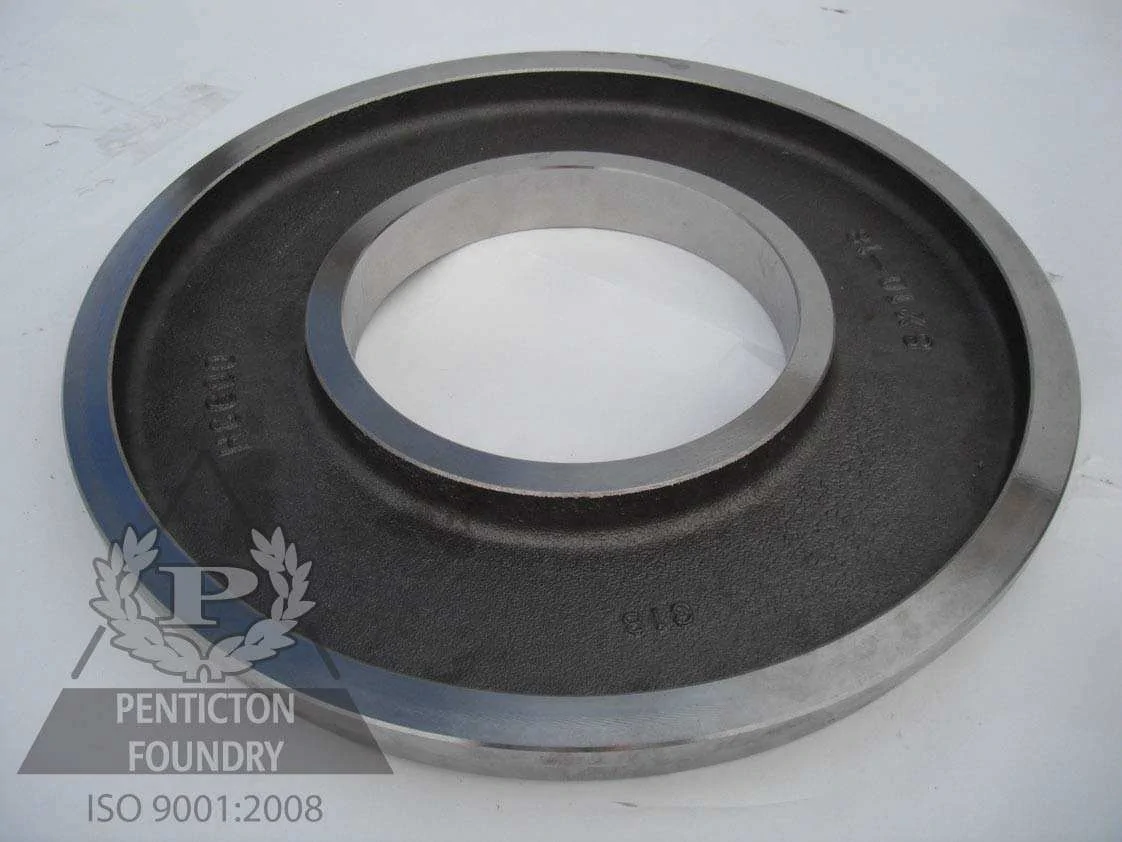

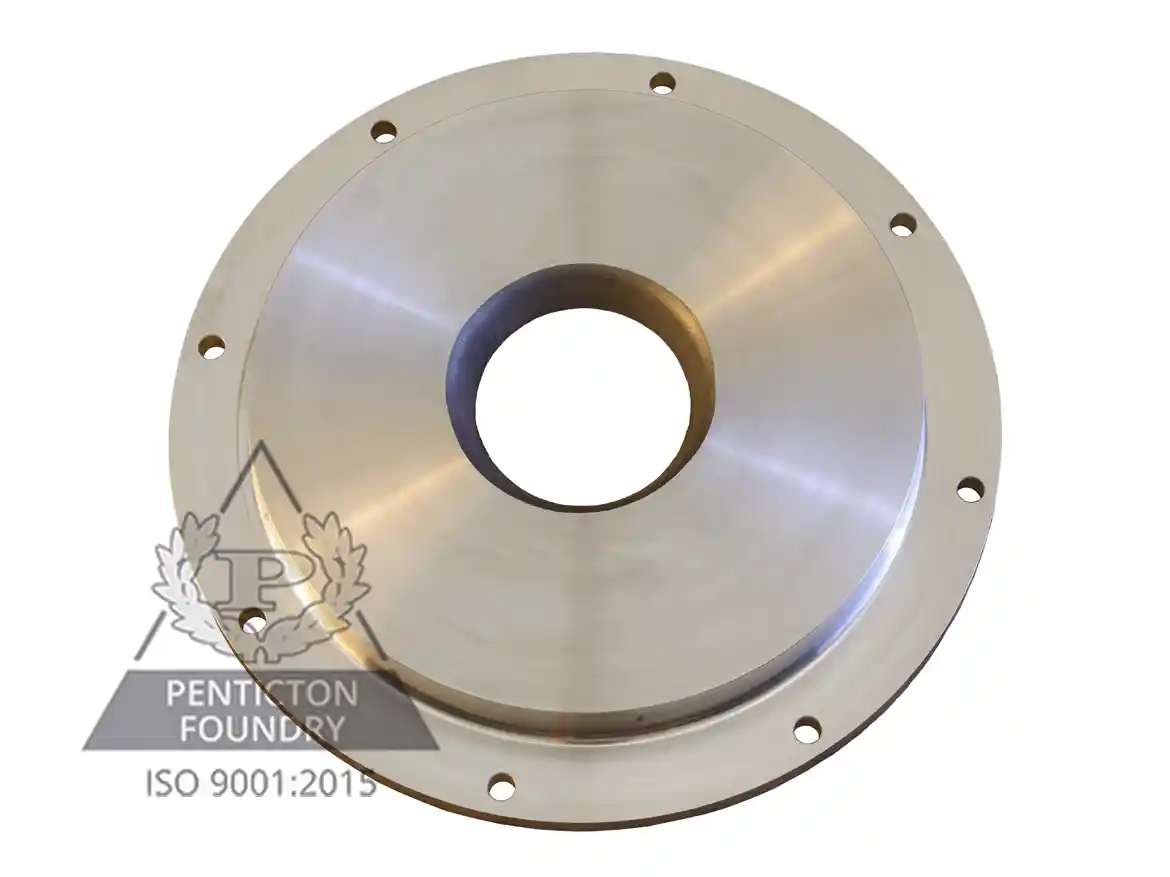

Fully machine chrome white iron suction liner.Search

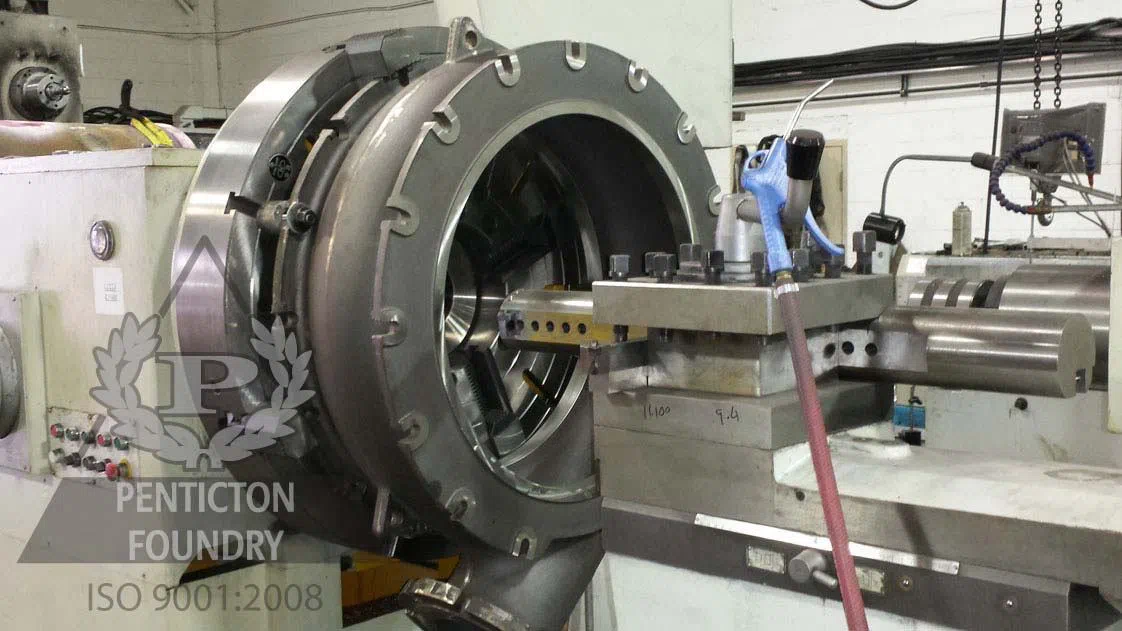

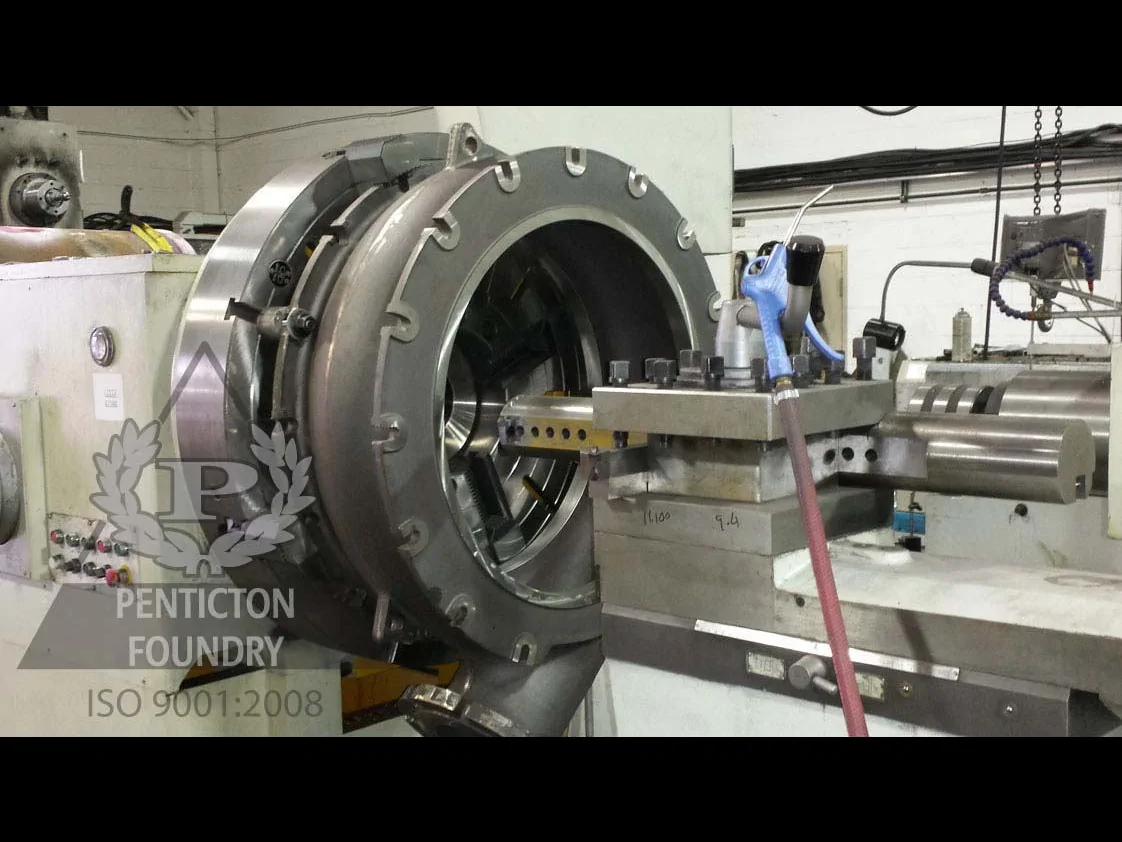

Solid chrome white iron pump casing on the lathe being machined.Search

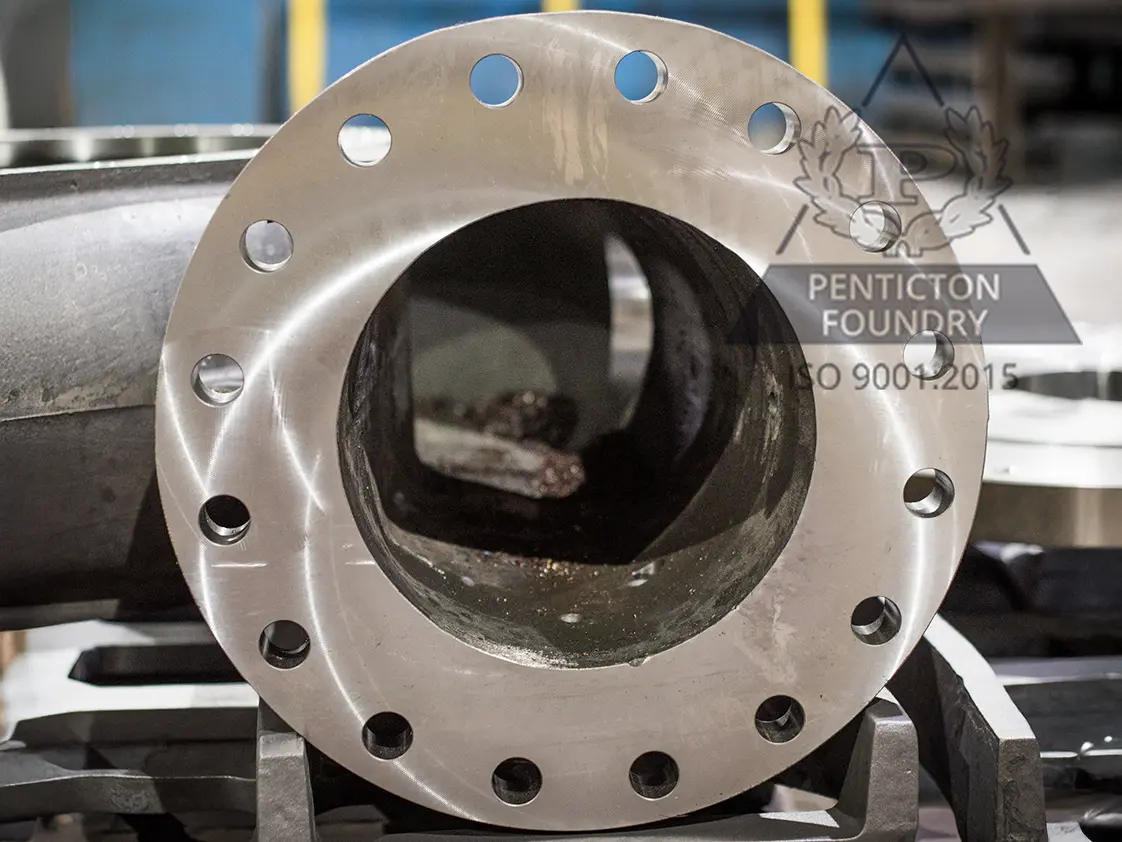

Fully machined, high chrome white iron voluteSearch

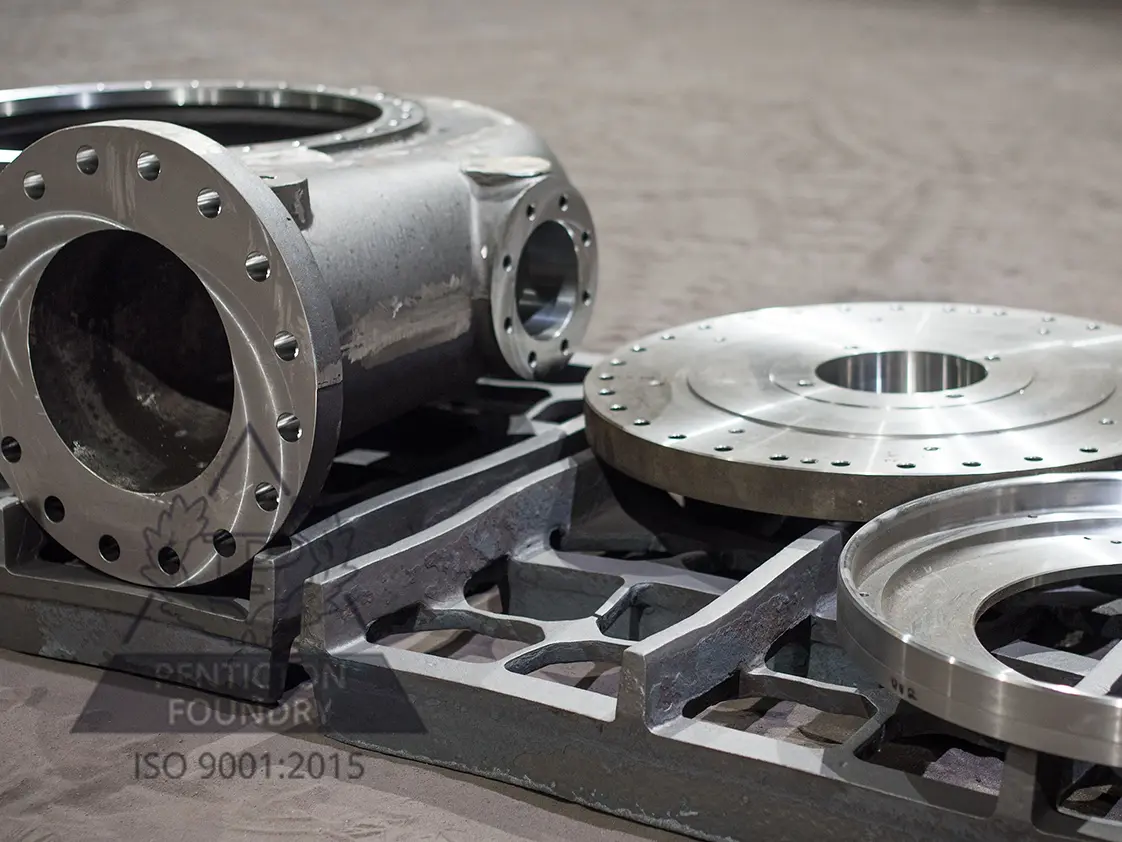

Fully machined, high chrome white iron liners and voluteSearch
Chrome white iron impellerSearch

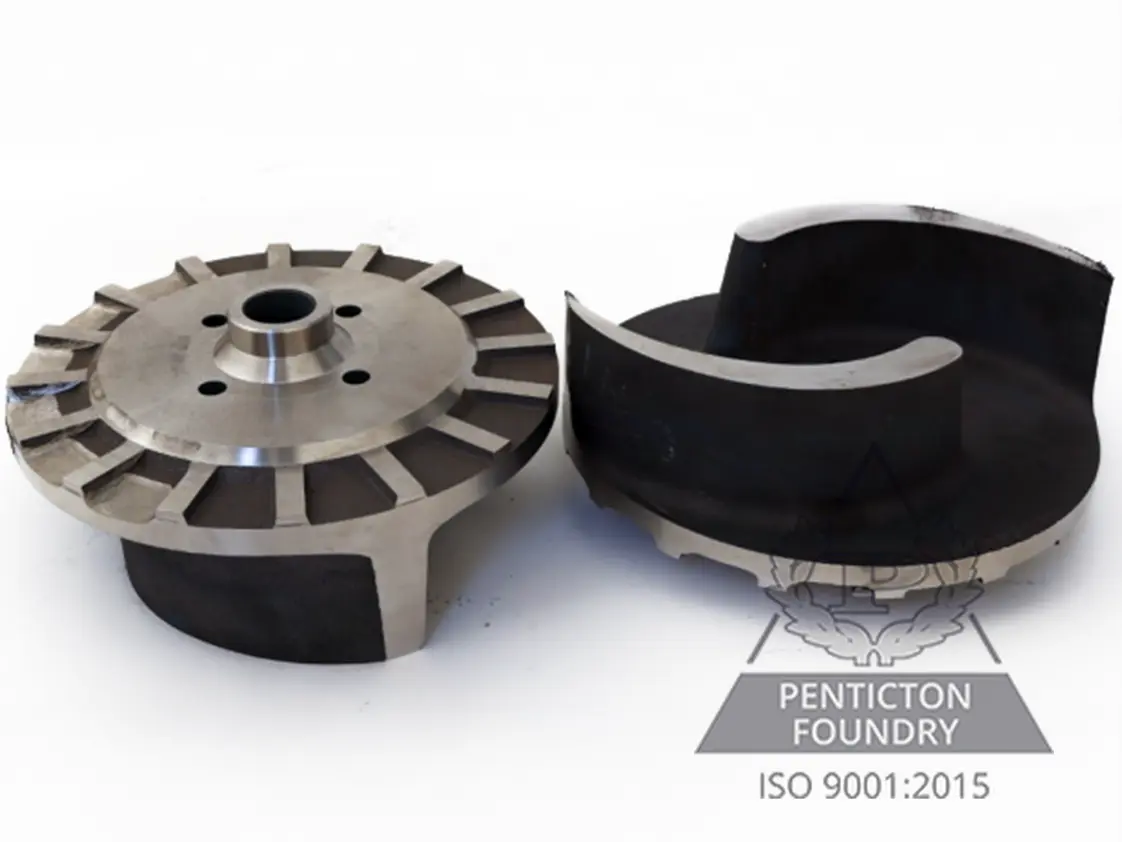

Fully machined, two-vane open impellers made in high chrome white ironSearch

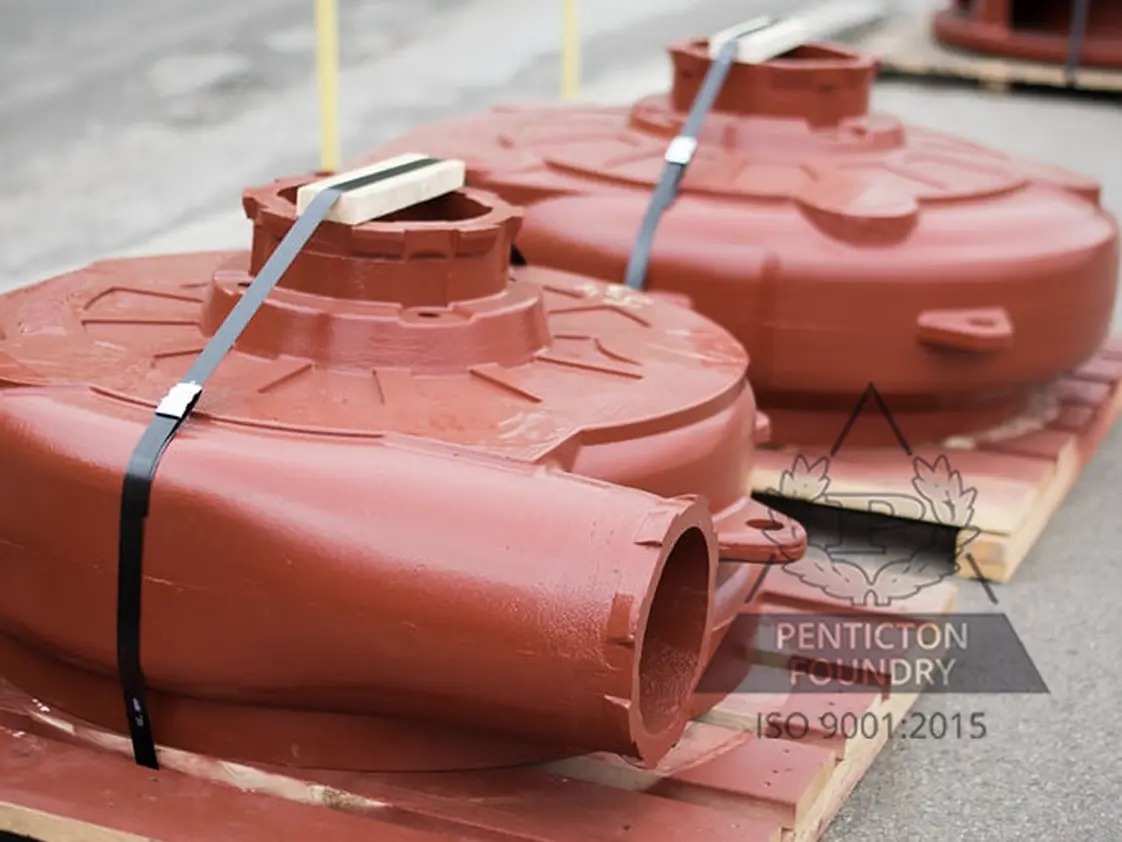

Volutes for the pump industry made of chrome white ironSearch
Learn about the myths and facts of Chrome White Iron
