ASTM A532 Class II Type A 12% Cr
on January 7, 2026
Exploring ASTM A532 Class 2 Type A
ASTM A532 Class II Type A 12% Cr is an alloy that has improved toughness compared to the Ni-Hard alloys. It has an average carbide percentage of 22%. Its matrix is comprised of martensite when in the hardened condition. The carbides are of the M7C3 variety, with some secondary carbides thanks to the addition of molybdenum. A hardness of >650 BHN can be achieved with the proper heat treatment.
More cost-effective than Ni-Hard, and with good wear resistance, it can be used in a controlled, dry wear application when there is little concern of corrosion.
Read: To understand why chrome white iron is so abrasion resistant, read this.
Composition of ASTM A532 Class 2 Type A
| C | Mn | Si | Cr | Mo | |
|---|---|---|---|---|---|
| Min% | 2.0 | 0 | 0 | 11 | 0.5 |
| Max% | 3.3 | 1.0 | 1.5 | 14 | 3.0 |
Physical and Mechanical Properties of ASTM A532 Class 2 Type A
| Density lb/in³ (g/cm³) | 0.28 (7.7) |
| Thermal Conductivity Btu/hr·ft·°F (W/m·K) | 8.6-17.3 (15-30) |
| Specific Heat at 70°F Btu/lb·°F (J/Kg·k) | 0.119 |
| Coefficient of Thermal Expansion Ɛ/°F (Ɛ/°C) X10⁶ average between 70-1112°F | 7.2 (13) |
| Melting Temperature (°F) | 2300F |
| Compressive Strength Ksi (MPa) | 429 (2960) |
| Transverse Strength Ksi (MPa) | 136 (938) |
Typical Hardness of ASTM A532 Class 2 Type A
| Brinell (depends on thickness) | |
|---|---|
| As-Cast | 450-550 |
| Annealed | 350-450 |
| Hardened | 600-650 |
Designing With ASTM A532 Class 2 Type A
ASTM A532 Class 2 Type A fills a niche similar to the ASTM A532 Class I alloys, but with improved toughness and corrosion resistance.
It can be supplied in the as-cast condition at 550 BHN, or the hardened condition at 650 BHN. This alloy is chill-cast for some applications and will achieve a hardness of 550 BHN in this condition. Specialized heat treatments will achieve the desired through-hardness in the casting.
ASTM A532 Class II Type A has improved toughness compared to the Class I alloys, but it is still considered a brittle material. Work closely with your foundry during the design phase to determine optimal section thickness for the required properties.
The ASTM A532 Class II Type A material can be softened for machining if required. If softened for machining, it can be reduced to a hardness of 400BHN.
Read: To learn more about designing with chrome white iron read, “The Top 5 Design Mistakes in Chrome White Iron Castings”.
Corrosion Properties of ASTM A532 Class 2 Type A
The 12% Cr alloy has improved corrosion resistance compared to the ASTM A532 Class I alloys. If the corrosion environment is extreme and abrasive, consider the using the 28-30% Cr alloy.

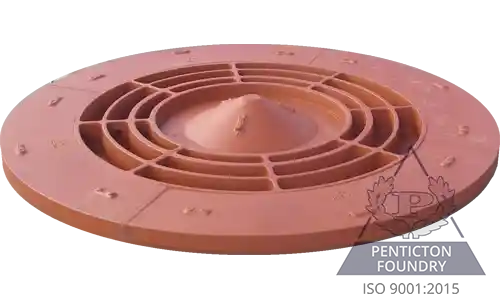

Applications for ASTM A532 Class 2 Type A
The 12% Cr alloy would be best suited for a controlled, dry wear application. It would be a good replacement for any Ni-Hard alloy, offering an increased toughness.
- Standard wall and chute liners
- Mixed cement
- Mill liners and lip liners
- Small wear pumps and impellers
- Sustainability and recycling industry wear parts like paddles and blades
Read: To learn more about chrome white iron and to see other ASTM A532 data sheets, check out our chrome white iron webpage.
Download Our
Free Alloys Fact Sheet Get The Facts
on Chome White Iron
